Specifications
ELECTRICAL DATA (STC)
Peak Power Watts- PMAX (Wp)- 250W
Power Output Tolerance- PMAX (W)- 0~+5
Maximum Power Voltage- VMPP (V)- 18.9V
Maximum Power Current- IMPP (A)- 13.2A
Open Circuit Voltage (VOC)- 22.8V
Short Circuit Current ISC (A)- 13.7A
Module Efficiency η m (%)- 19.5%
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM = 1.5
MECHANICAL DATA

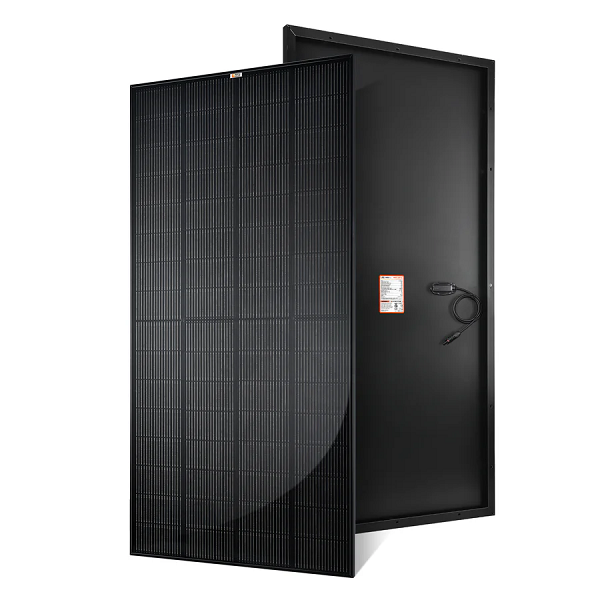

Solar Cells- Monocrystalline 182 x 91mm (6.5")
Module Dimensions- 60.6" x 29.9" x 1.2"
Cell Orientation- 64 Cells (2x(4x8)
Weight- 25.8lbs
Glass- 3.2mm, High Transmission, AR Coated Tempered Glass
Connector- MC4
Frame- Anodized Aluminum Alloy
Junction Box- IP65 or IP67 Rated
Cables- Photovoltaic Technology Cable 4.0mm² (#12 gauge) 35" Length
TEMPERATURE RATINGS
Nominal Operating Cell Temperature (NOCT)- 45°C (±2°C)
Temperature Coefficient of PMAX- -0.39%/°C
Temperature Coefficient of VOC- -0.29%-°C
Temperature Coefficient of ISC- 0.05%/°C
