Pure DC Mini Split Heat Pump; 7000 BTU/h cooling, 8000 BTU/h heating

Pure DC Mini Split Heat Pump; 7000 BTU/h cooling, 8000 BTU/h heating

Regular price $1,950.00 USD
Regular price Sale price $1,950.00 USD
Sale Sold out

1 in stock

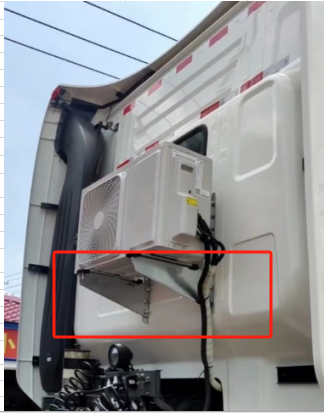

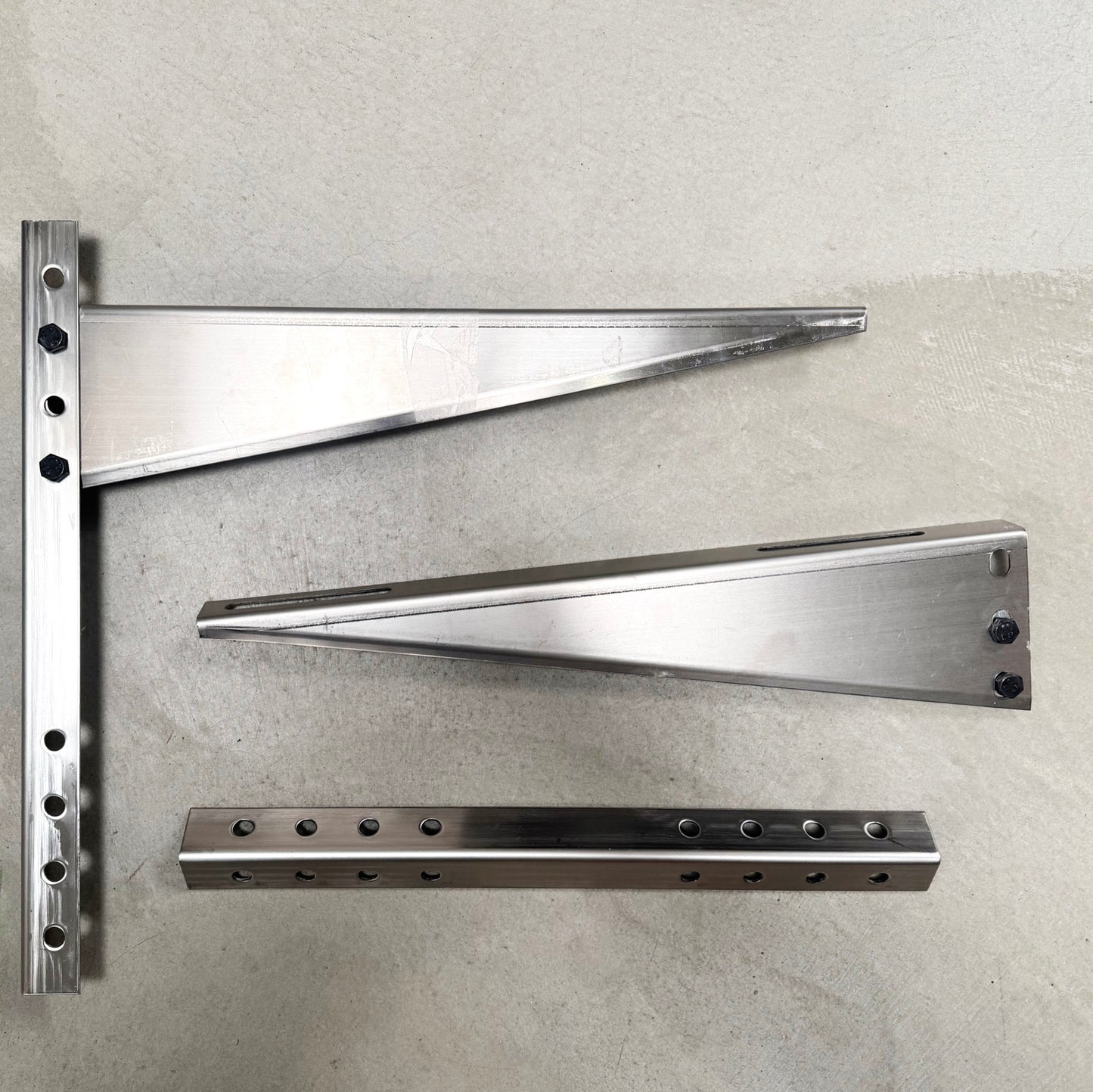

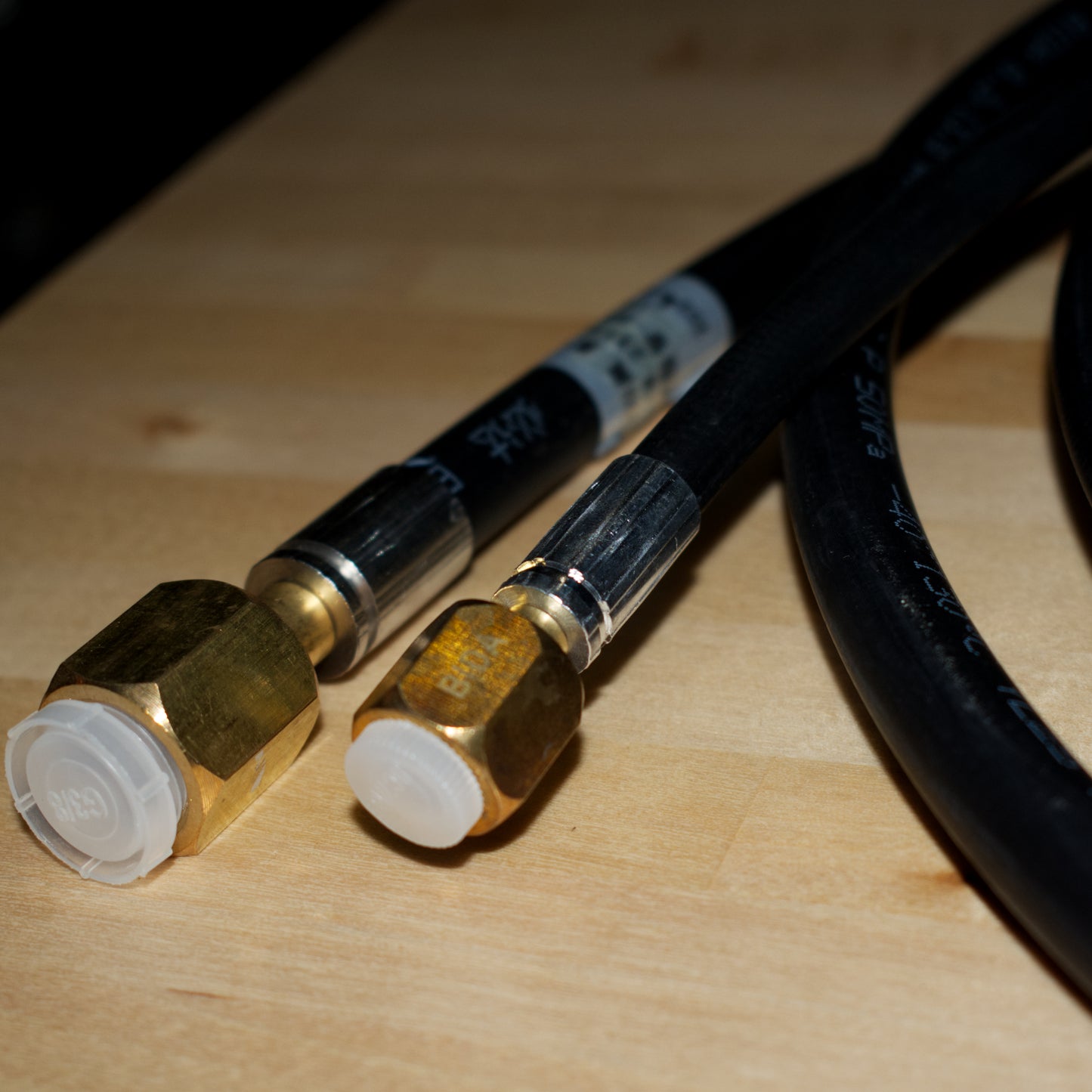

Mini Split perfect for small spaces, including RV's, campers etc. Stainless steel wall mounting bracket included. 10 foot rubber HVAC hose included. You can install it with a regular copper lineset as well (purchase separately).

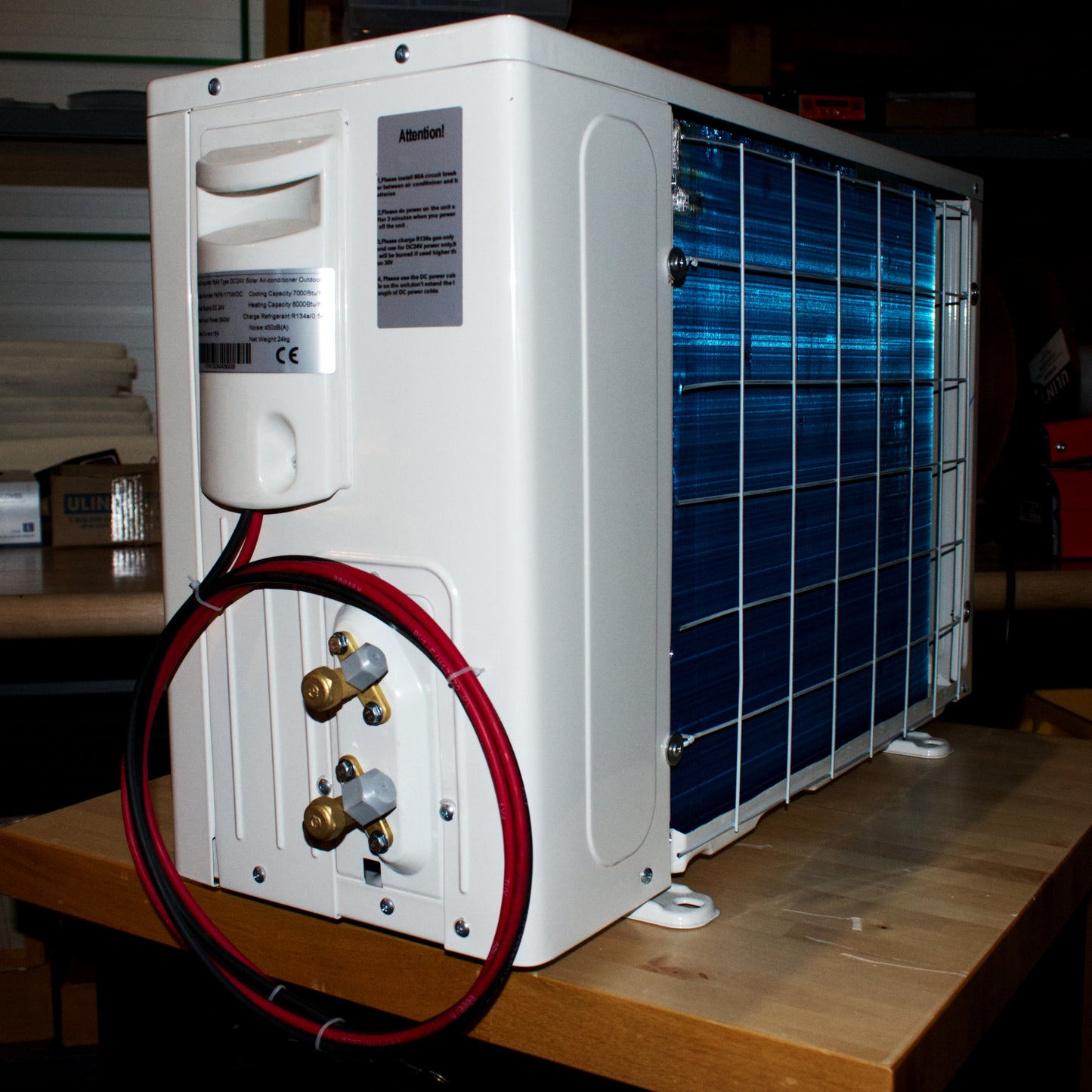

For applications were your source power is DC, including solar installs, this mini heat pump offers the highest efficiency possible, often exceeding an EER of 16. This converts to SEER ratings over 30. The unit operates in both cooling and heating modes, offering you 7000 BTU/h cooling capacity and 8000 BTU/h heating capacity in a miniature format for only 350 watts power used. The low pressure, non-flammable R134a refrigerant is already prefilled in the outdoor unit; all you need to do is connect the hoses, evacuate the lines, and release the gas.

SPEC SHEET - 7000 BTU/H MODEL

Capacity

Cooling

7,000 BTU/h

Heating

8,000 BTU/h

Air Flow

265 CFM

EER

W/W

4.88

BTU/h/W

15.79

Refrigerant

R-134A

Compressor

Panasonic 24-48VDC

Fans

24-48V BLDC

Heating Function

Yes

Refrigerant Line


9.5 Feet (3 meters), rubber, included.

Power Consumption

Rated Power Input

Watts

340 W

Rated Current

Amps

14 A (24V Model)

7 A (48V Model)

Input Voltage Range

DC

21-30 V (24V Model)

42-60V (48V Model)




Dimensions

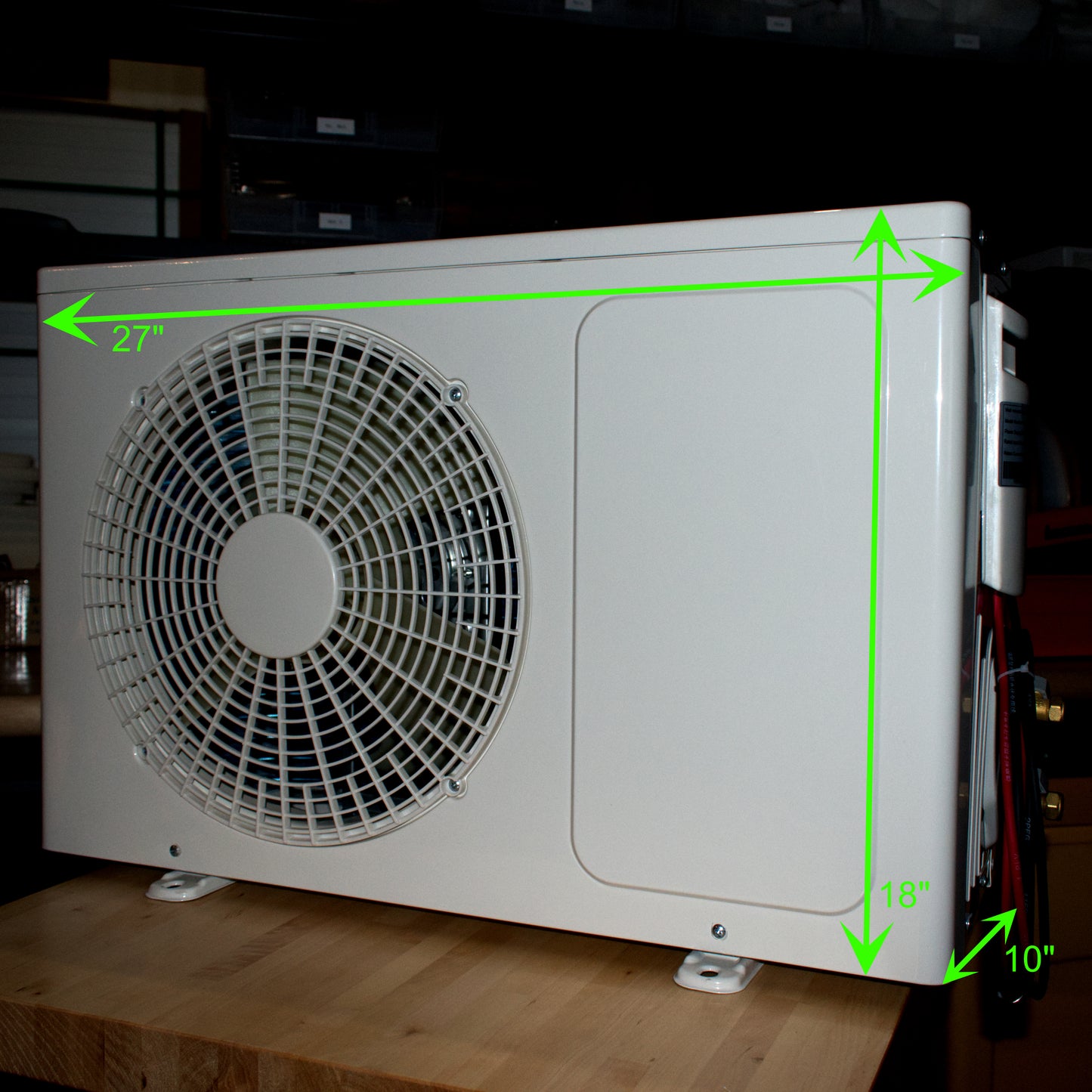

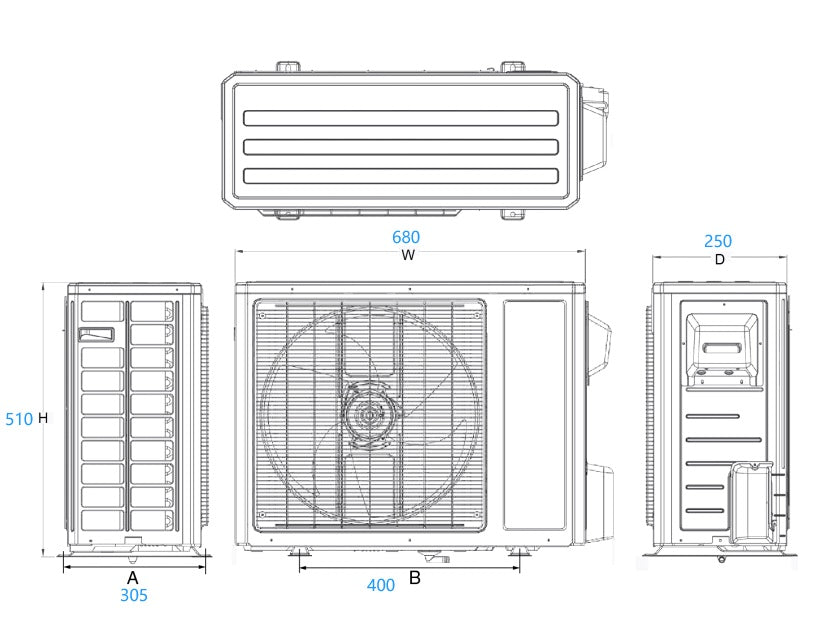

Outdoor Unit Size

27" Wide x 18" Tall x 10” Deep

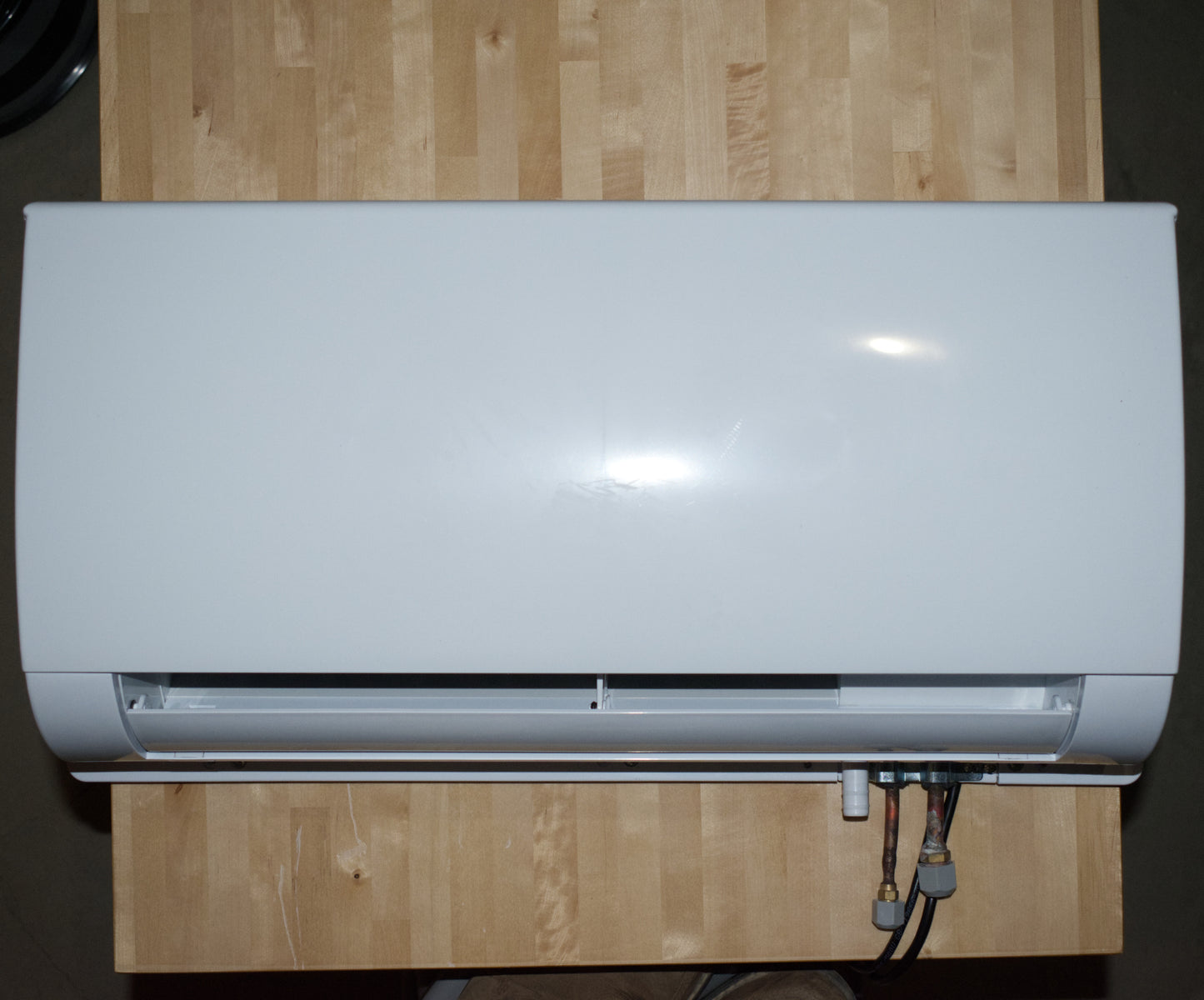

Indoor Blower Size

25" Wide x 13" Tall x 8” Deep

Weight

Outdoor

49 Lbs

Indoor

15 Lbs



Recommended accessories:

We recommend you pair this air conditioner with a 13.4 kWh battery which can run it for 56 hours on a full charge.

We recommend using the Victron Battery Protect module to set the desired off voltage for the unit, and it will safely turn off the air conditioner when the battery gets low. That way your air conditioner can shut off but you will have enough reserve for your critical appliances (e.g., your inverter with electronics, lights, AC fans etc) to continue running until the next morning.

Additional Resources:

How to set your mini split to turn on automatically when the battery recharges in the morning, and shut off at night before fully depleting your battery:



SPEC SHEET

Capacity

Cooling

7,000 BTU/h

Heating

8,000 BTU/h

Air Flow

265 CFM

EER

W/W

4.88

BTU/h/W

15.79

Refrigerant

R-134A

Compressor

Panasonic 24-48VDC

Fans

24-48V BLDC

Heating Function

Yes

Refrigerant Line


9.5 Feet (3 meters), rubber, included.

Power Consumption

Rated Power Input

Watts

340 W

Rated Current

Amps

14 A (24V Model)

7 A (48V Model)

Input Voltage Range

DC

21-30 V (24V Model)

42-60V (48V Model)




Dimensions

Outdoor Unit Size

27" Wide x 18" Tall x 10” Deep

Indoor Blower Size

25" Wide x 13" Tall x 8” Deep

Weight

Outdoor

49 Lbs

Indoor

15 Lbs
