48V DC Hydronic Water Chiller & Heater w/ 5.2 GPM DC Pump
48V DC Hydronic Water Chiller & Heater w/ 5.2 GPM DC Pump
Regular price
$3,250.00 USD
Regular price
Sale price
$3,250.00 USD
Unit price
per
2 in stock
Couldn't load pickup availability
Drawing a maximum of 1250 Watts, this 48V DC powered water-exchange heat pump is ready to serve your hydronic heating, cooling, or other water chilling and heating needs.

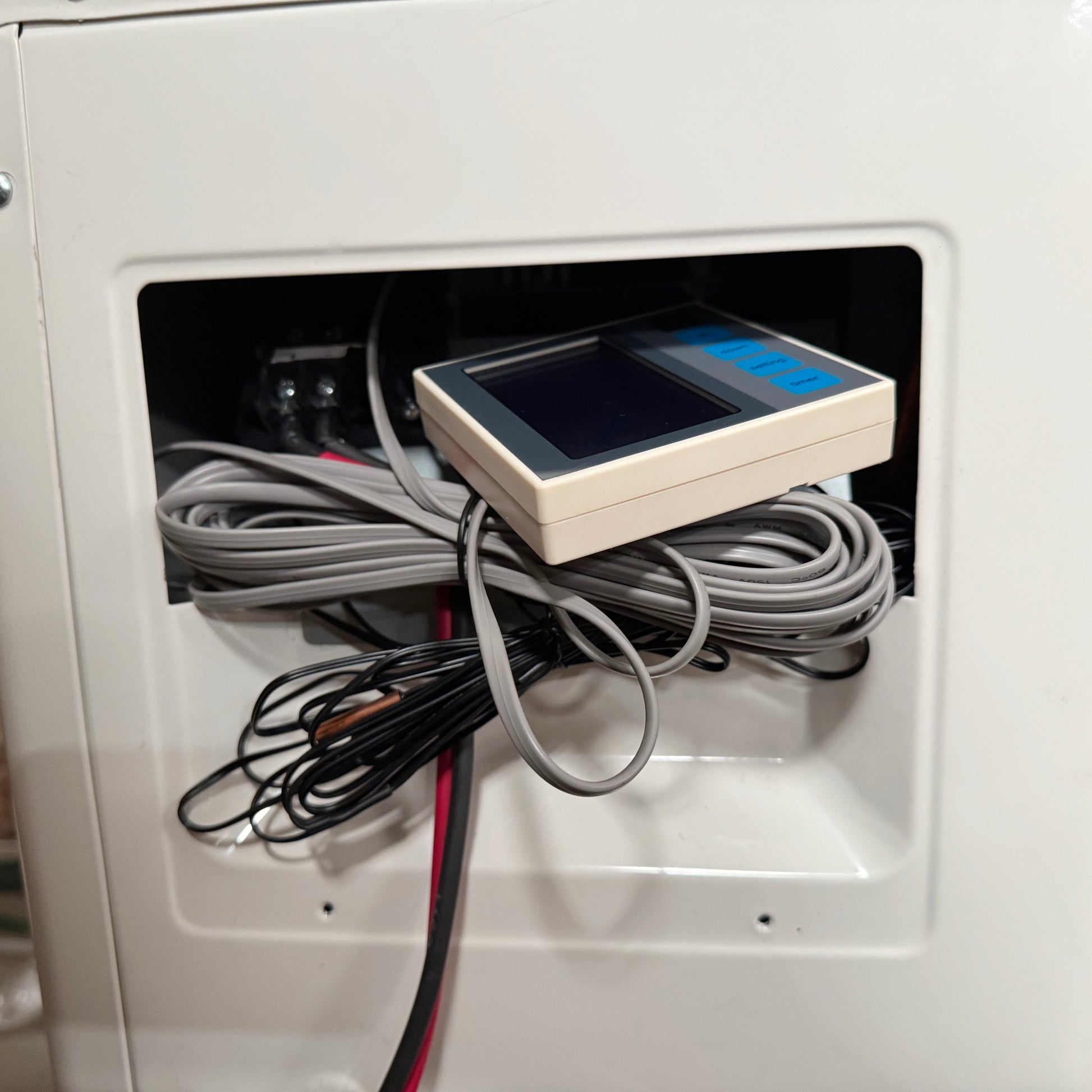

Ships pre-tested and pre-charged with R32 refrigerant ready to use. Just attach to a pressure tank or other body of water, and turn it on. The control panel and water temperature sensor probe are on a 33 foot wire (extendable). In stock ready for immediate shipment, delivery within the US in 3-5 days.

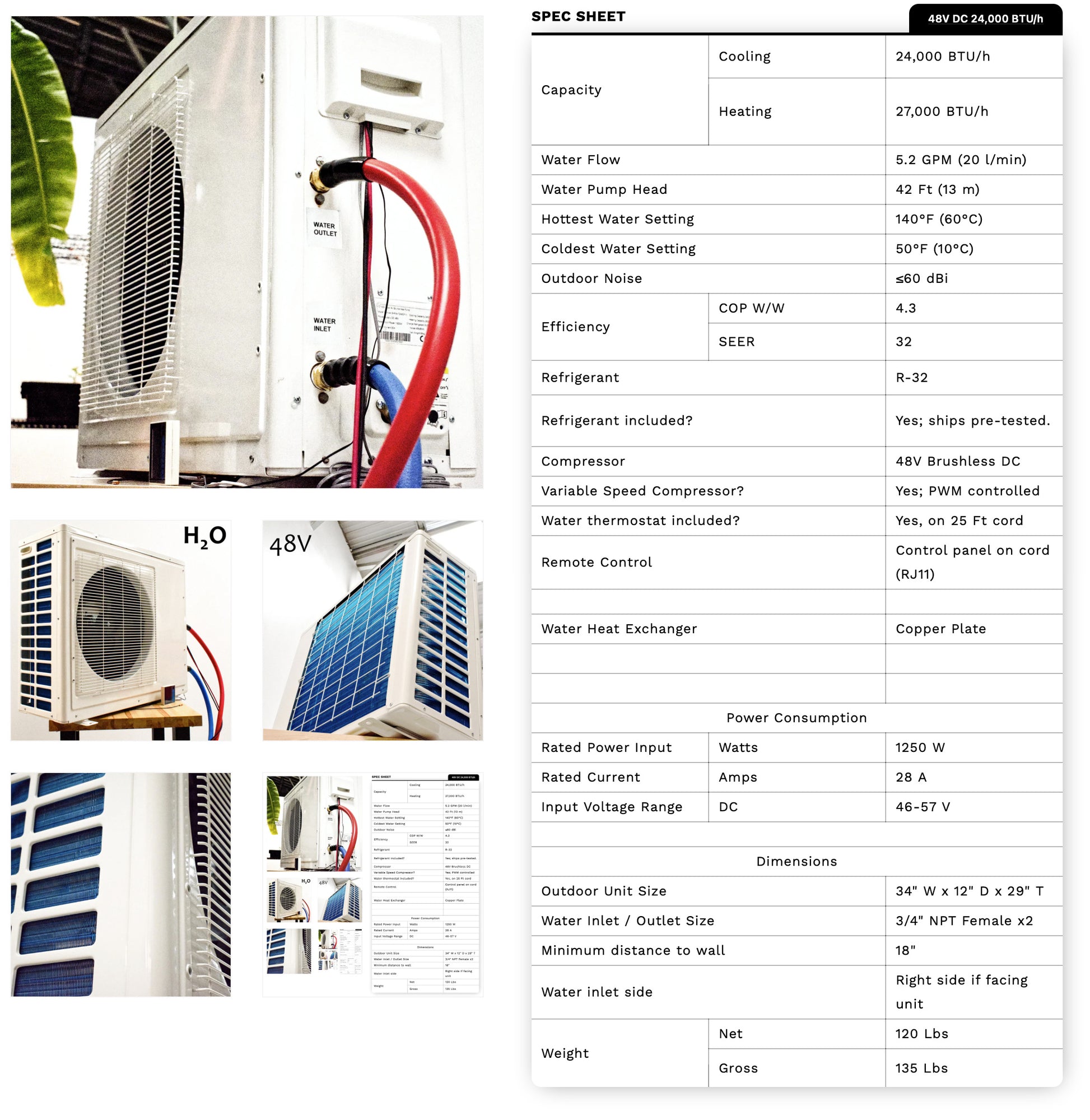

SPEC SHEET
|
Capacity |
Cooling |
24,000 BTU/h |
| Heating |
27,000 BTU/h |
|
|
Water Flow |
5.2 GPM (20 l/min) |
|
|
Water Pump Head |
42 Ft (13 m) |
|
|
Hottest Water Setting |
140°F (60°C) |
|
|
Coldest Water Setting |
50°F (10°C) |
|
|
Outdoor Noise |
≤60 dBi |
|
|
Efficiency |
COP W/W |
4.3 |
|
SEER |
32 |
|
|
Refrigerant |
R-32 |
|
|
Refrigerant included? |
Yes; ships pre-tested. |
|
|
Compressor |
48V Brushless DC |
|
|
Variable Speed Compressor? |
Yes; PWM controlled |
|
|
Water thermostat included? |
Yes, on 25 Ft cord |
|
|
Remote Control |
Control panel on cord (RJ11) |
|
|
Water Heat Exchanger |
Copper Plate |
|
|
|
|
|
|
|
|
|
|
Power Consumption |
||
|
Rated Power Input |
Watts |
1250 W |
|
Rated Current |
Amps |
28 A |
|
Input Voltage Range |
DC |
46-57 V |
|
Dimensions |
||
|
Outdoor Unit Size |
34" W x 12" D x 29" T |
|
|

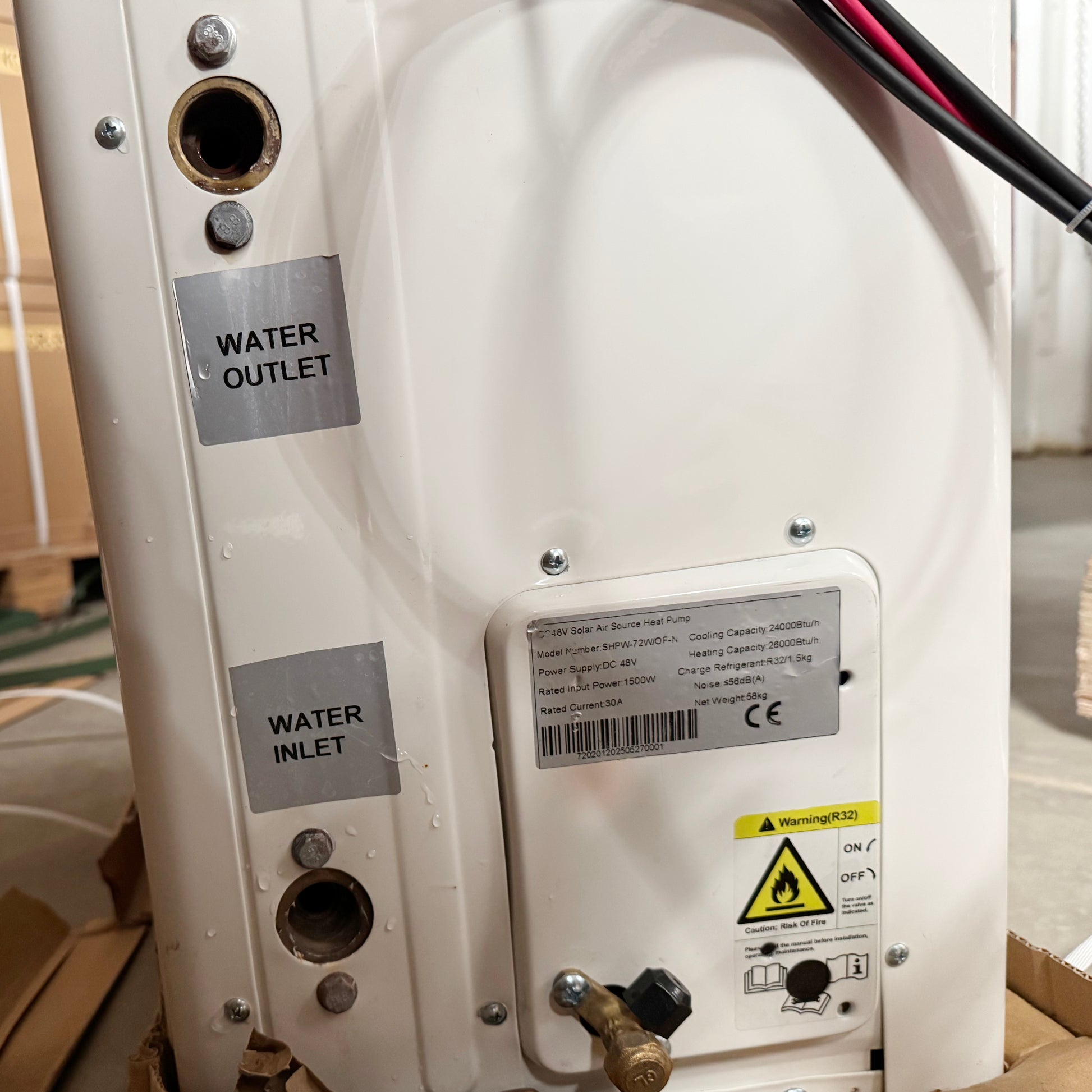

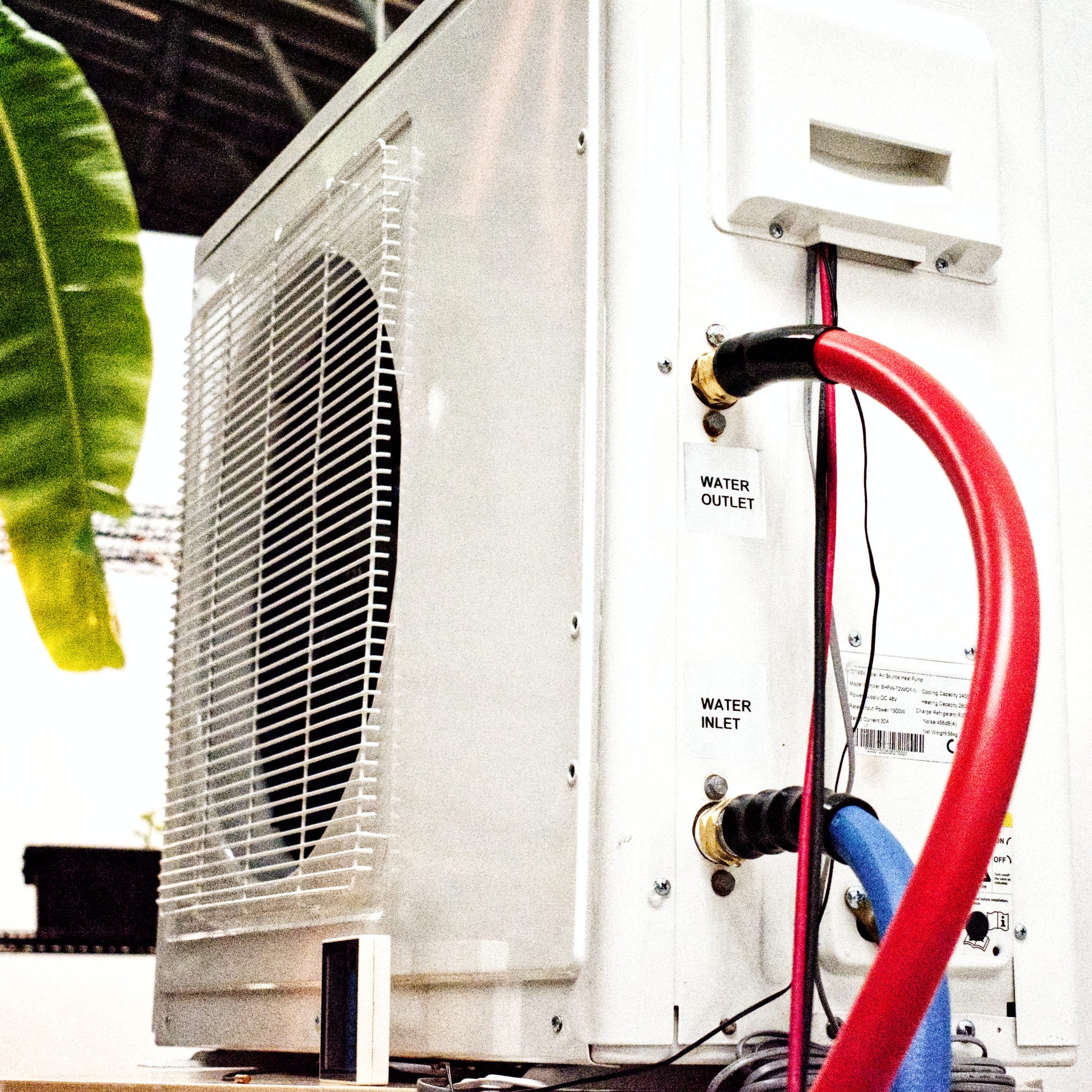

Water Inlet / Outlet Size |
3/4" NPT Female x2 |
|
|
Minimum distance to wall |
18" |
|
|
Water inlet side |
Right side if facing unit |
|
|
Weight |
Net |
120 Lbs |
|
Gross |
135 Lbs |
|
