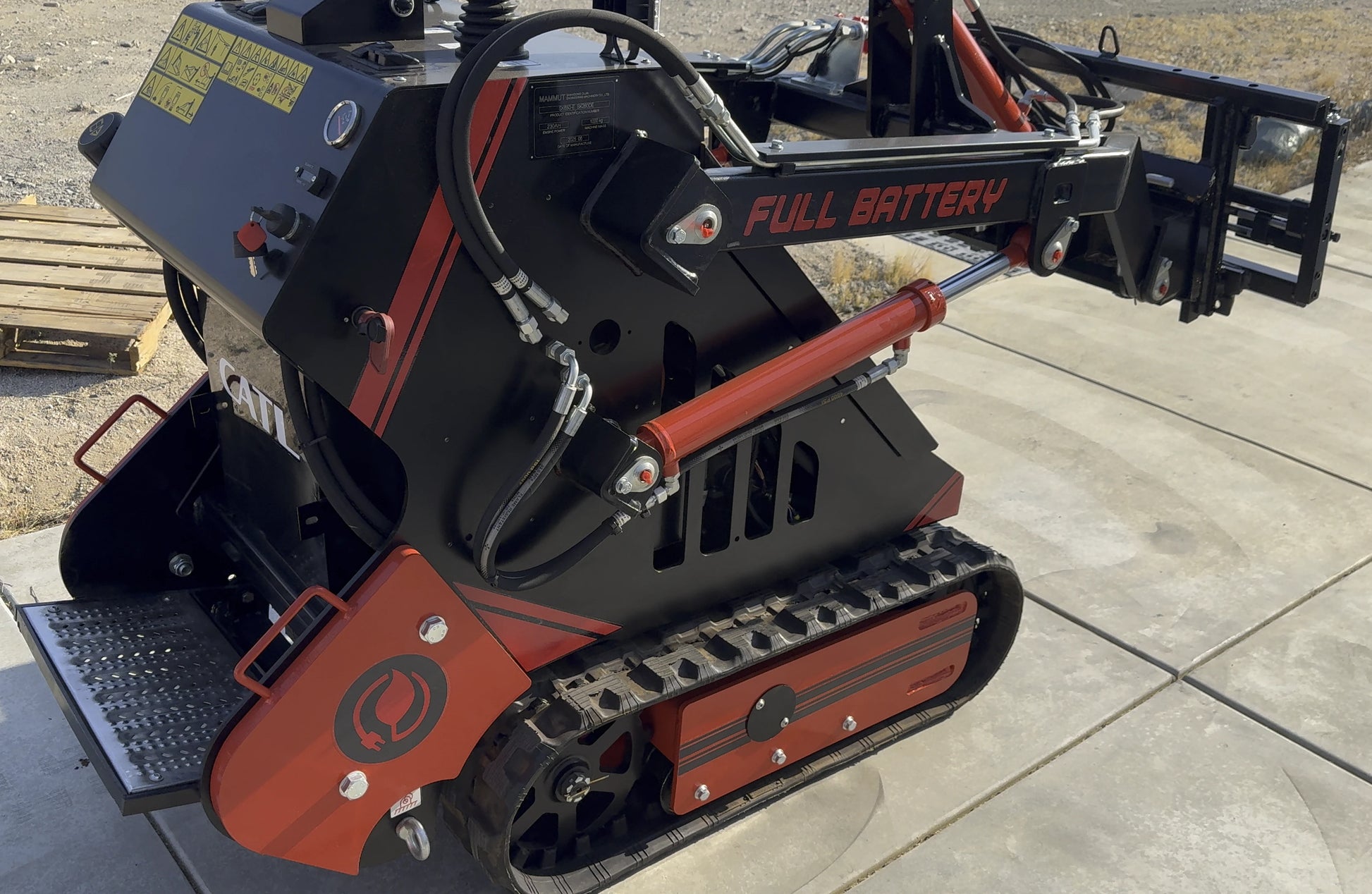

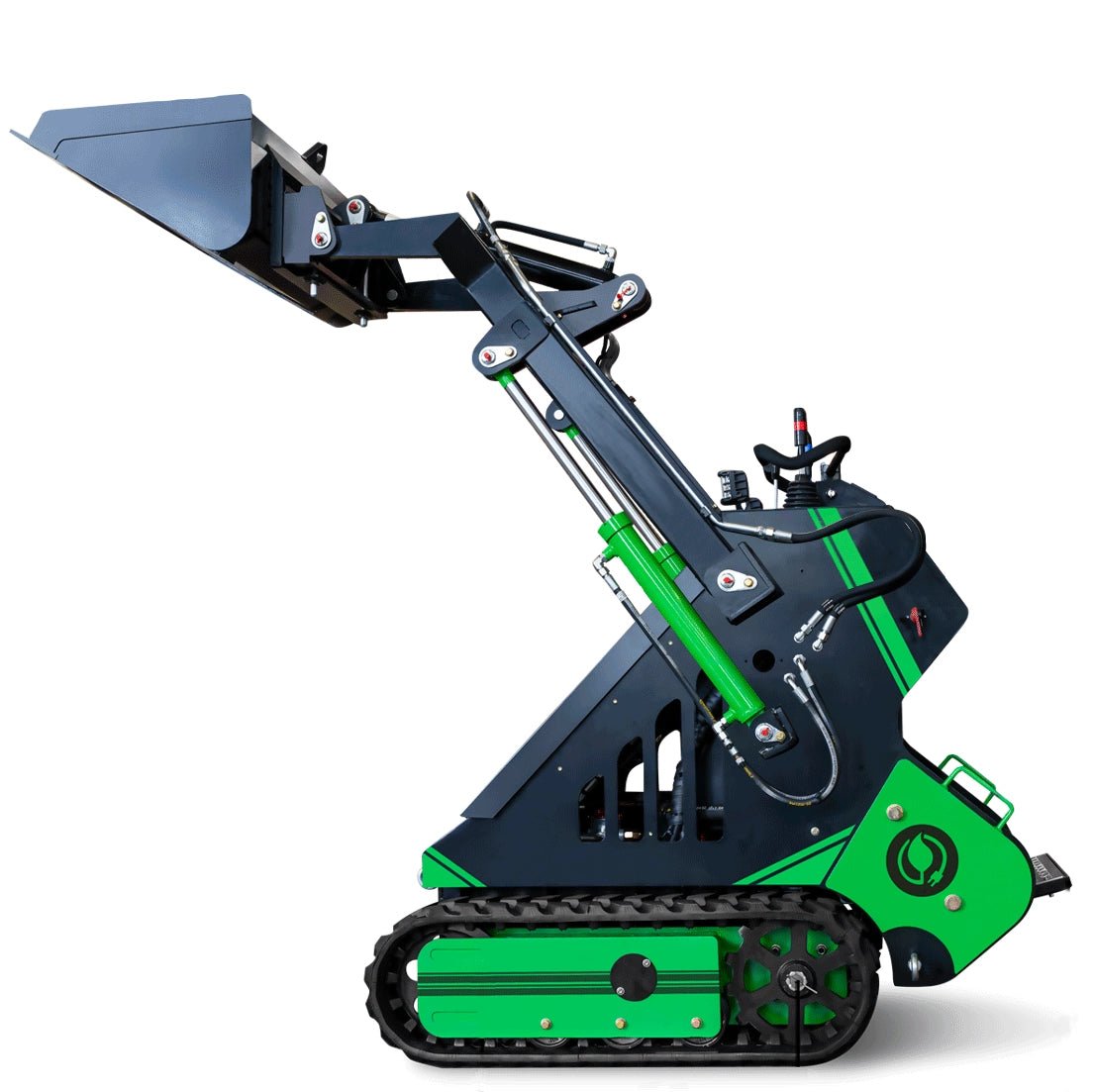

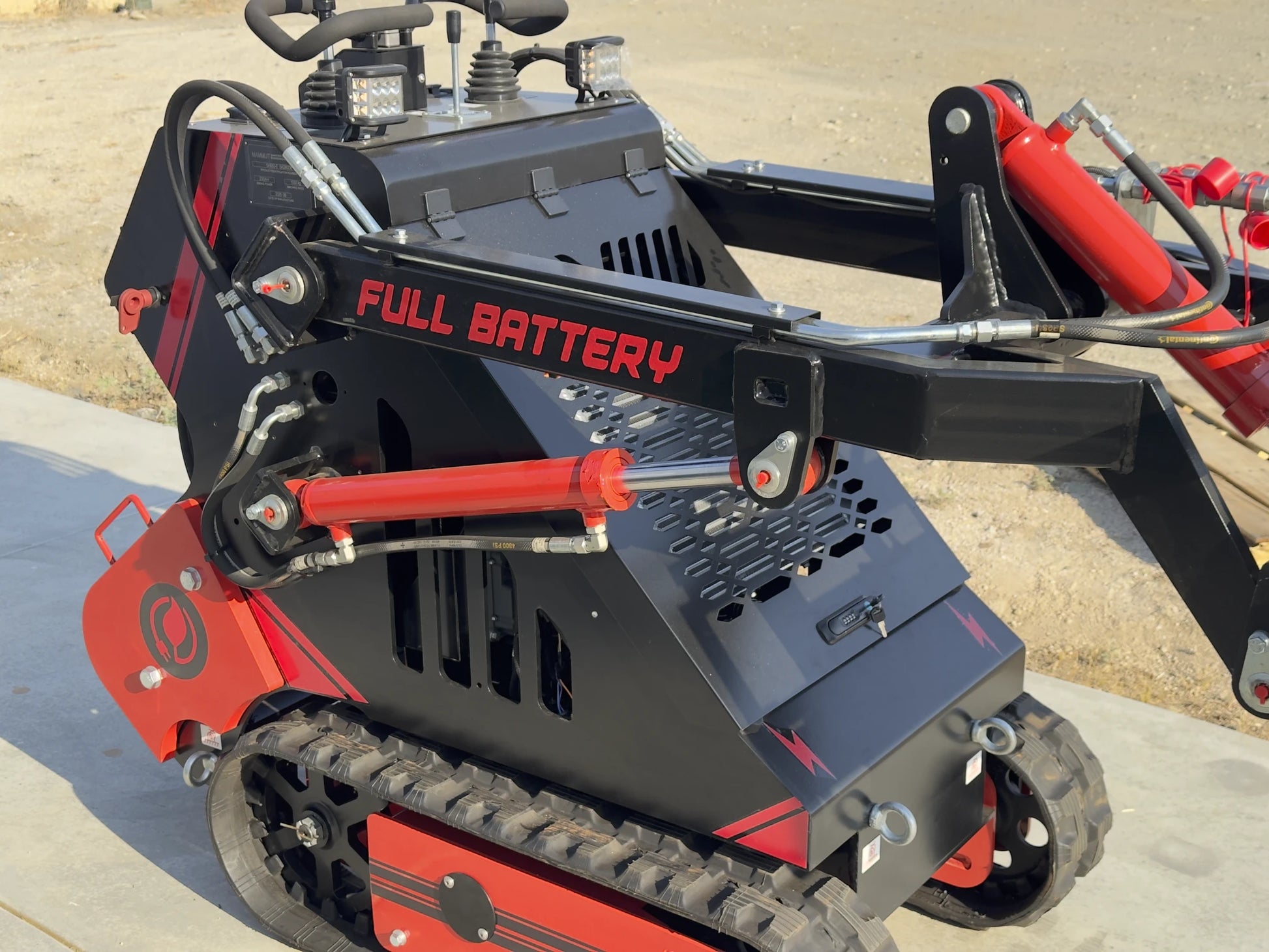

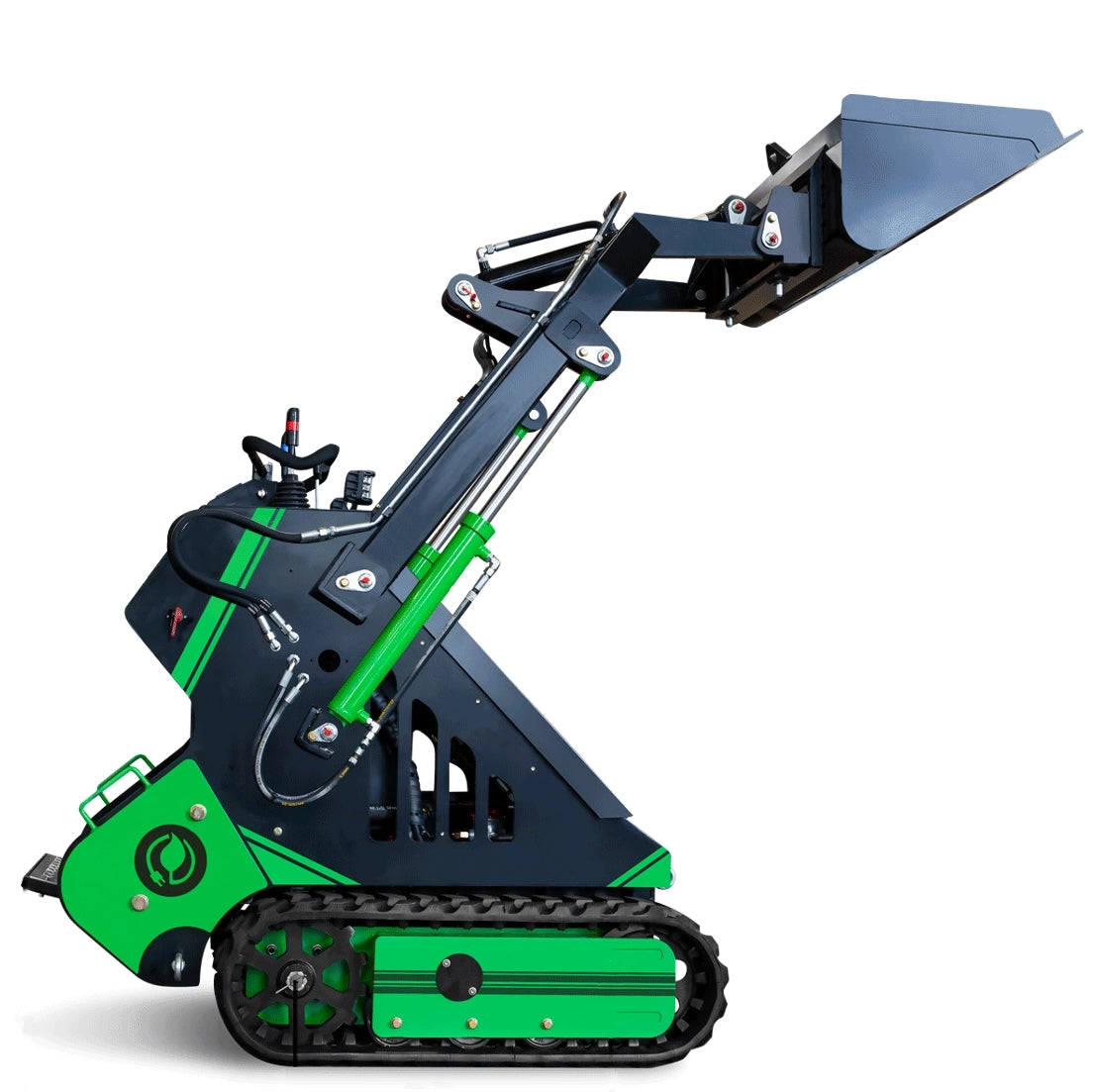

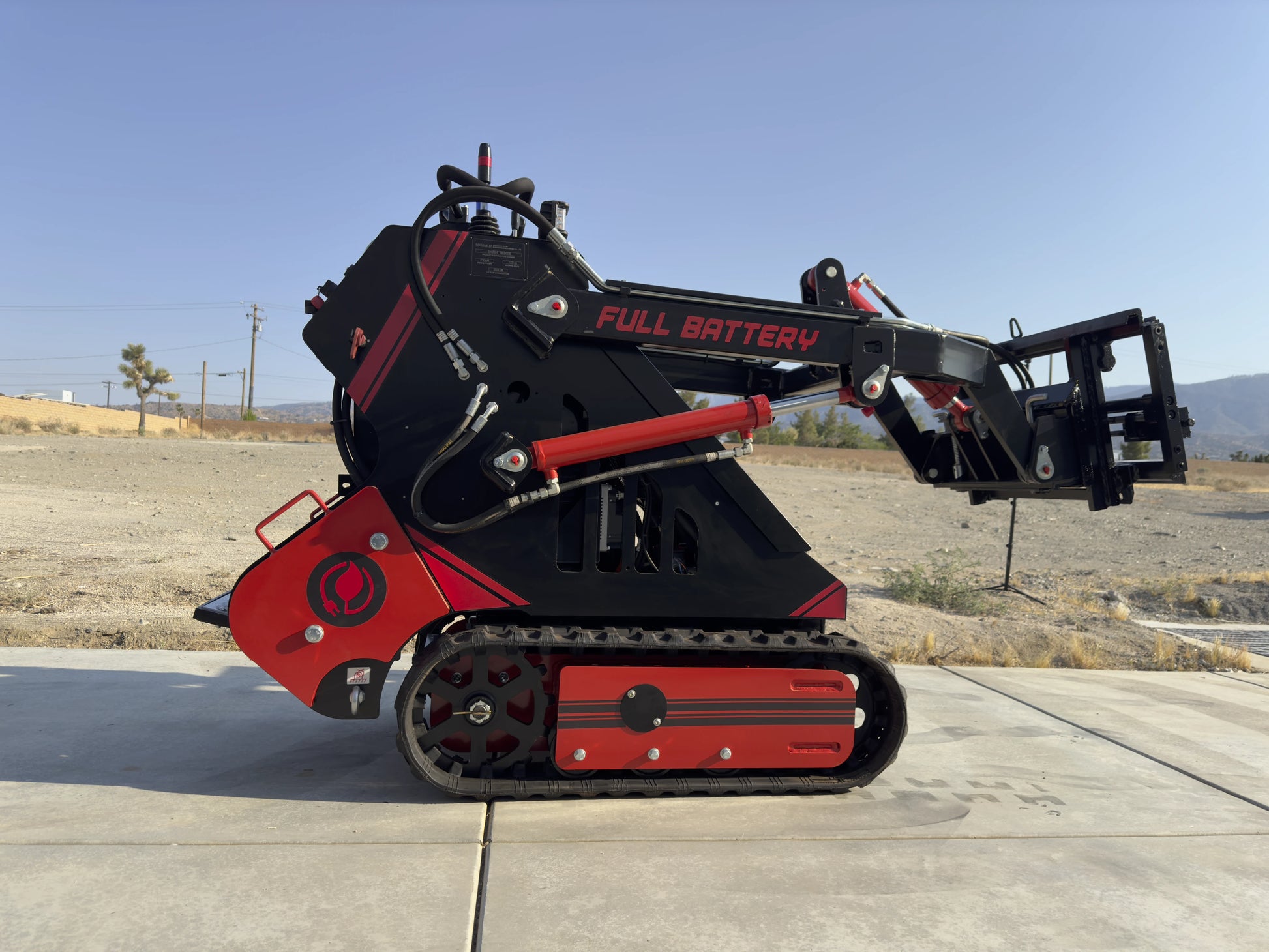

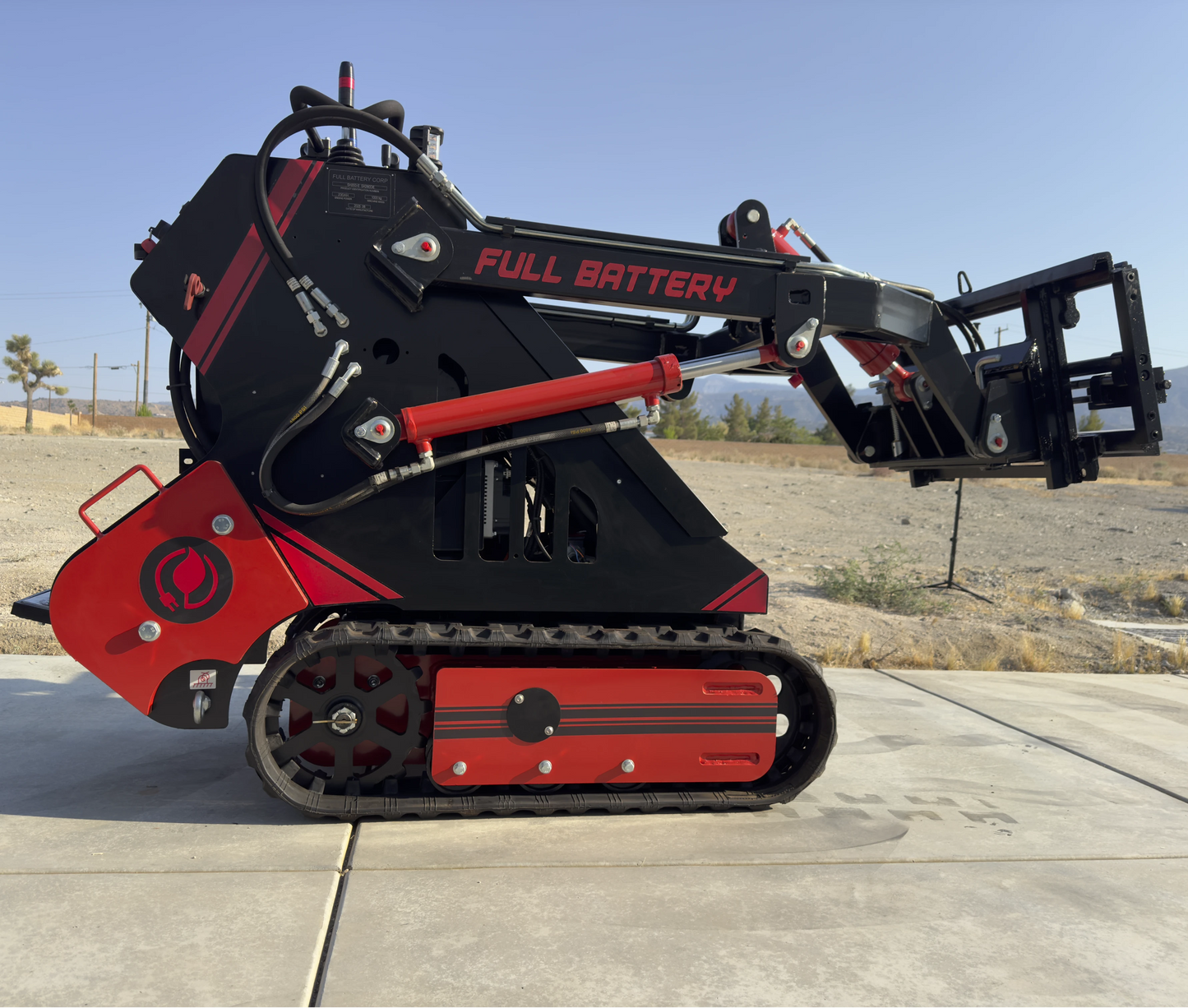

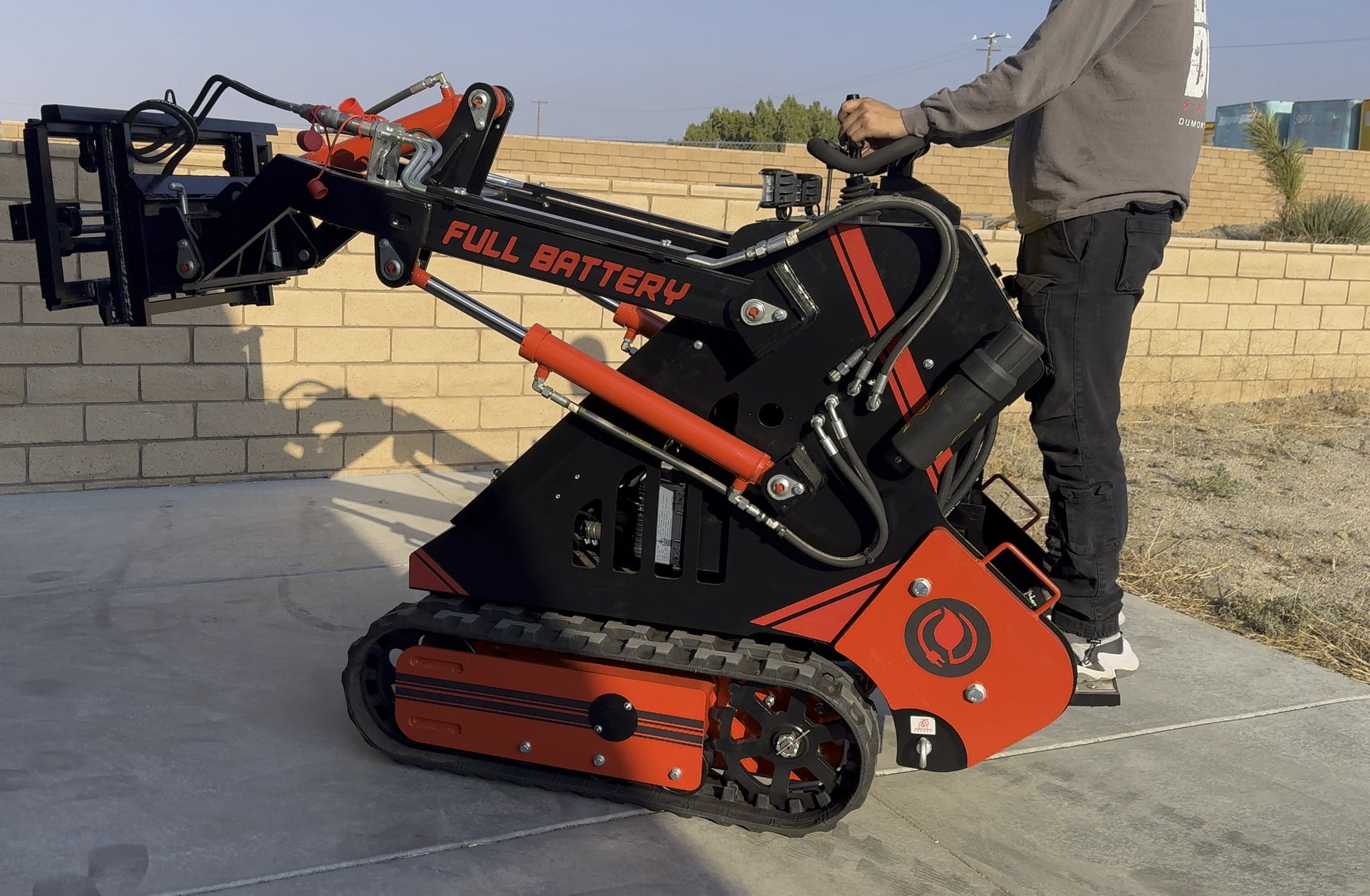

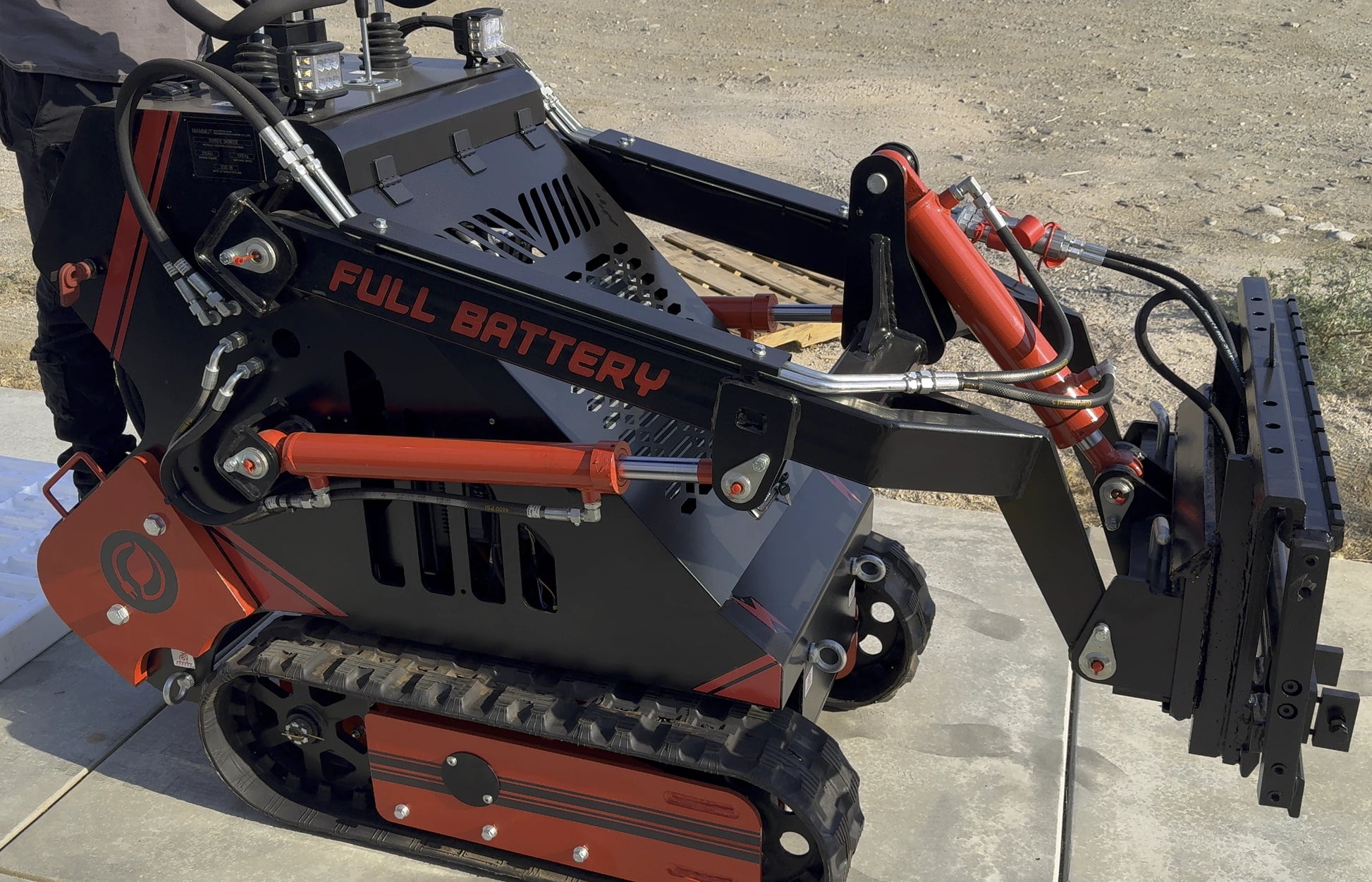

72V 16.4kWh Curiosity Mini Track Loader Skid Steer

72V 16.4kWh Curiosity Mini Track Loader Skid Steer

Regular price $23,500.00 USD
Regular price Sale price $23,500.00 USD
Sale Sold out

1 in stock

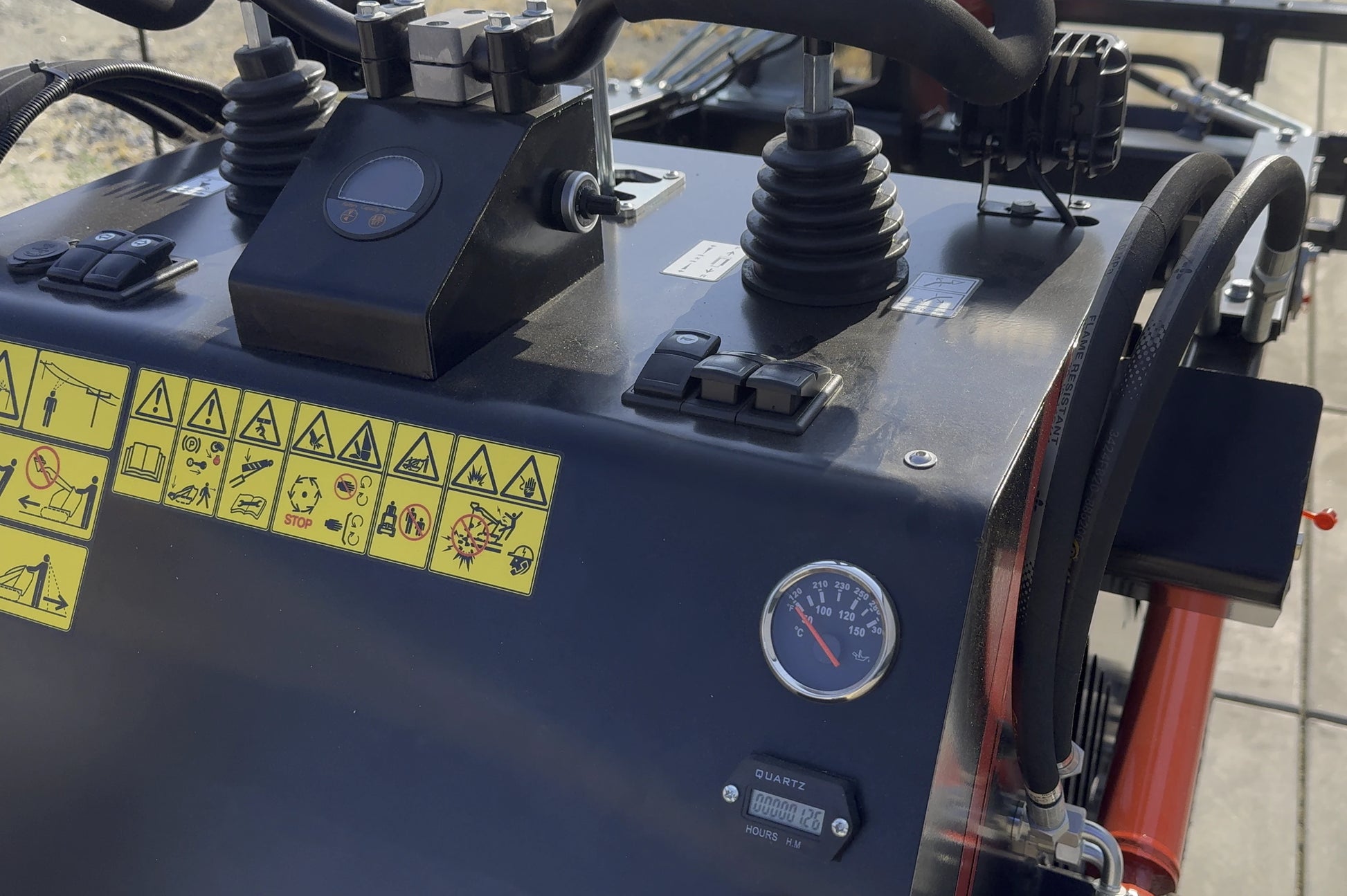

2000 Pounds on a Joystick. Fully Electric, work indoors, in caves, on Mars, whatever makes you happy. Never buy fuel again. Recharge from a regular power outlet or solar. Never buy fuel, sniff gas, or do an oil change again.

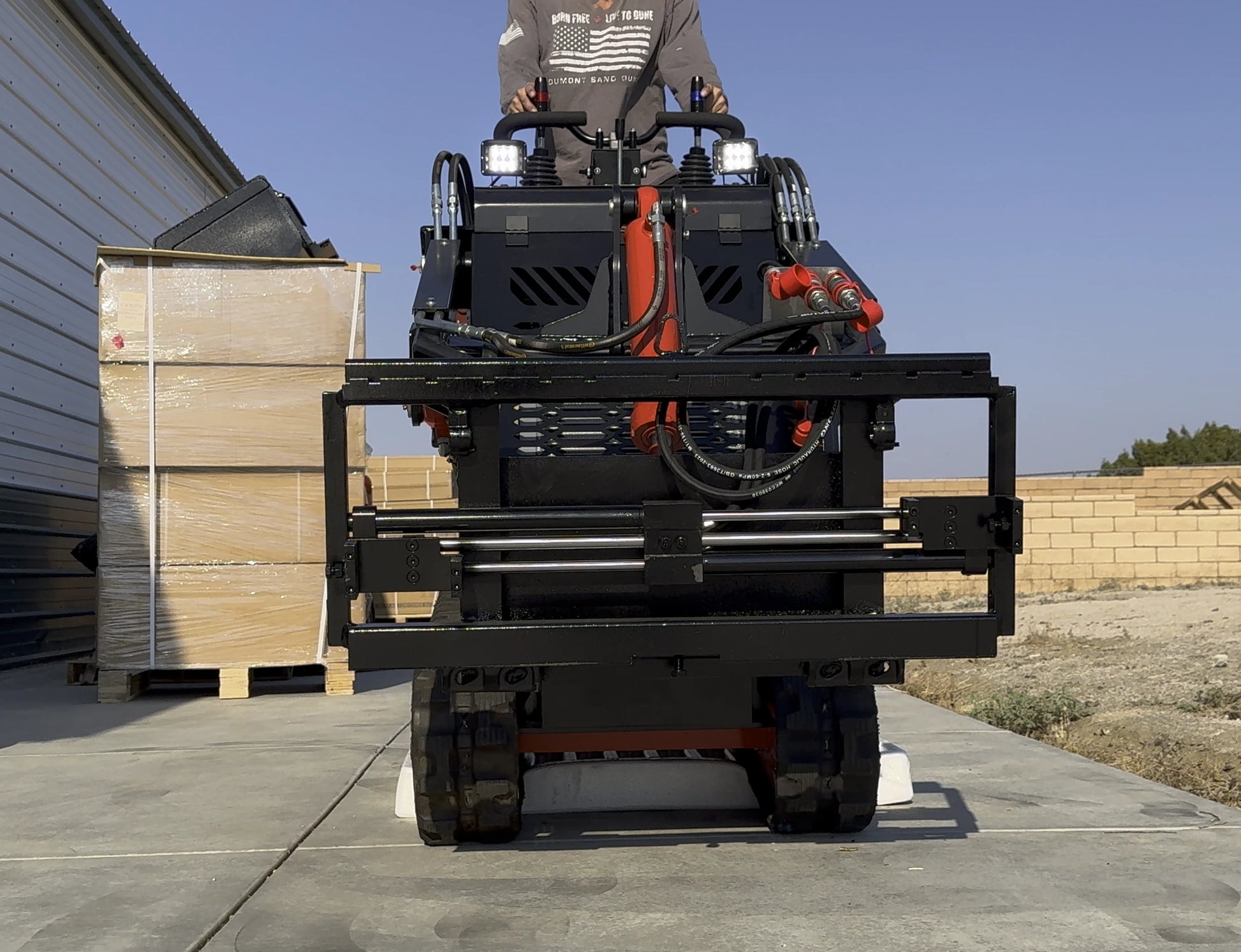

Fully electric, ready at all times with no fumes and no maintenance, the Full Battery Curiosity Loader is a 1 Ton (1000 kg) machine that delivers 663 Lbs lifting force and up to 16.5 gpm hydraulic flow for all-day brute shoveling, fork lifting, snow shoveling, borehole drilling fun. The generous battery will last over 30 years, does not fear being fully depleted, does not leak acid, recharges with a standard US 110V 20 Amp outlet, and offers over 8 hours of continuous operation on a single charge.

Able to roll through a 33 inch opening, the mini loader can serve your business, farm, or large backyard daily. Operate indoors with zero fumes. When done, simply plug into a 110V outlet to recharge using the onboard charger. No oil changes, no fuel. Want to charge it with solar? No problem. Contact us today and we can bundle it with a solar charge controller for the most efficient charging in remote locations.

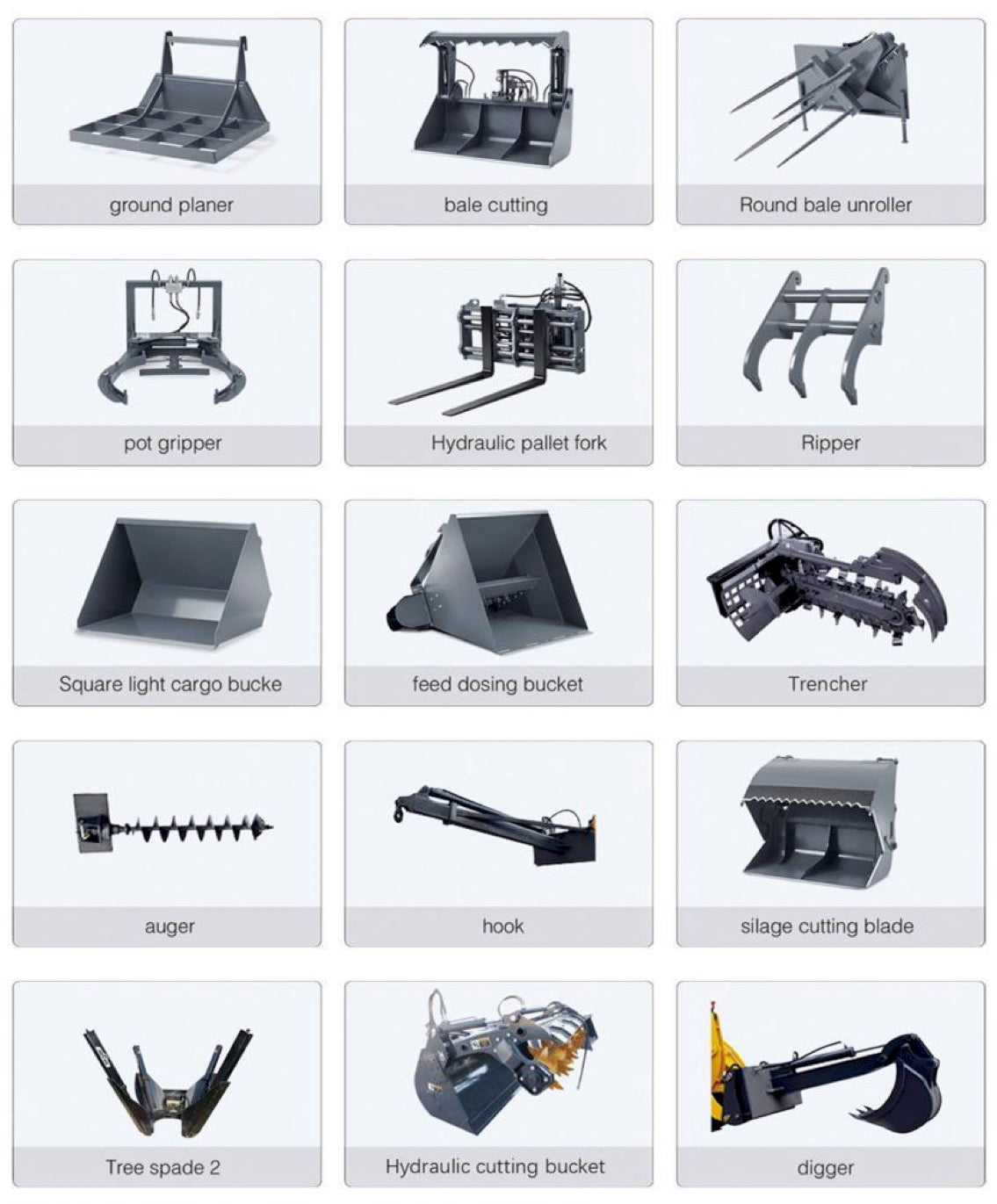

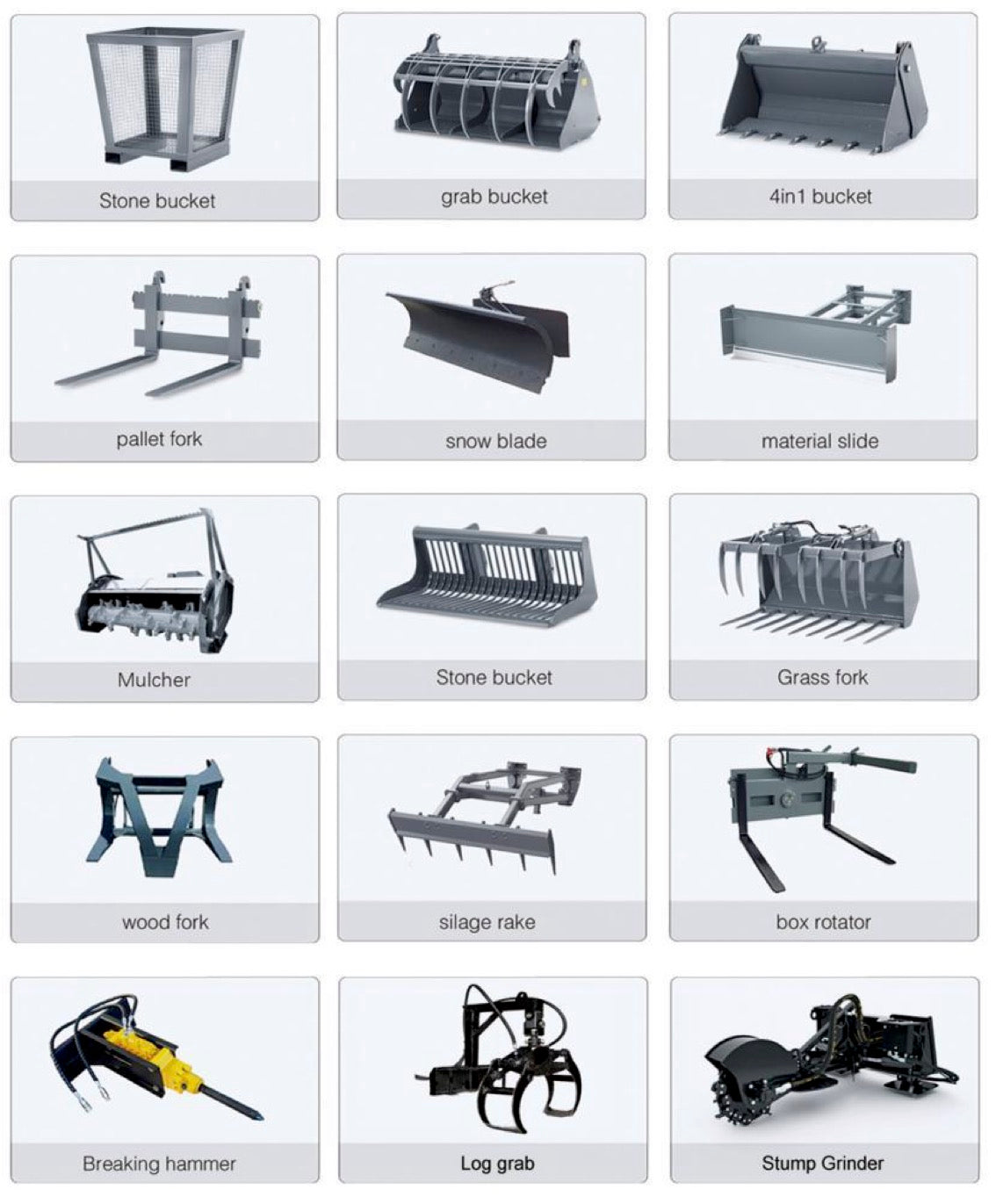

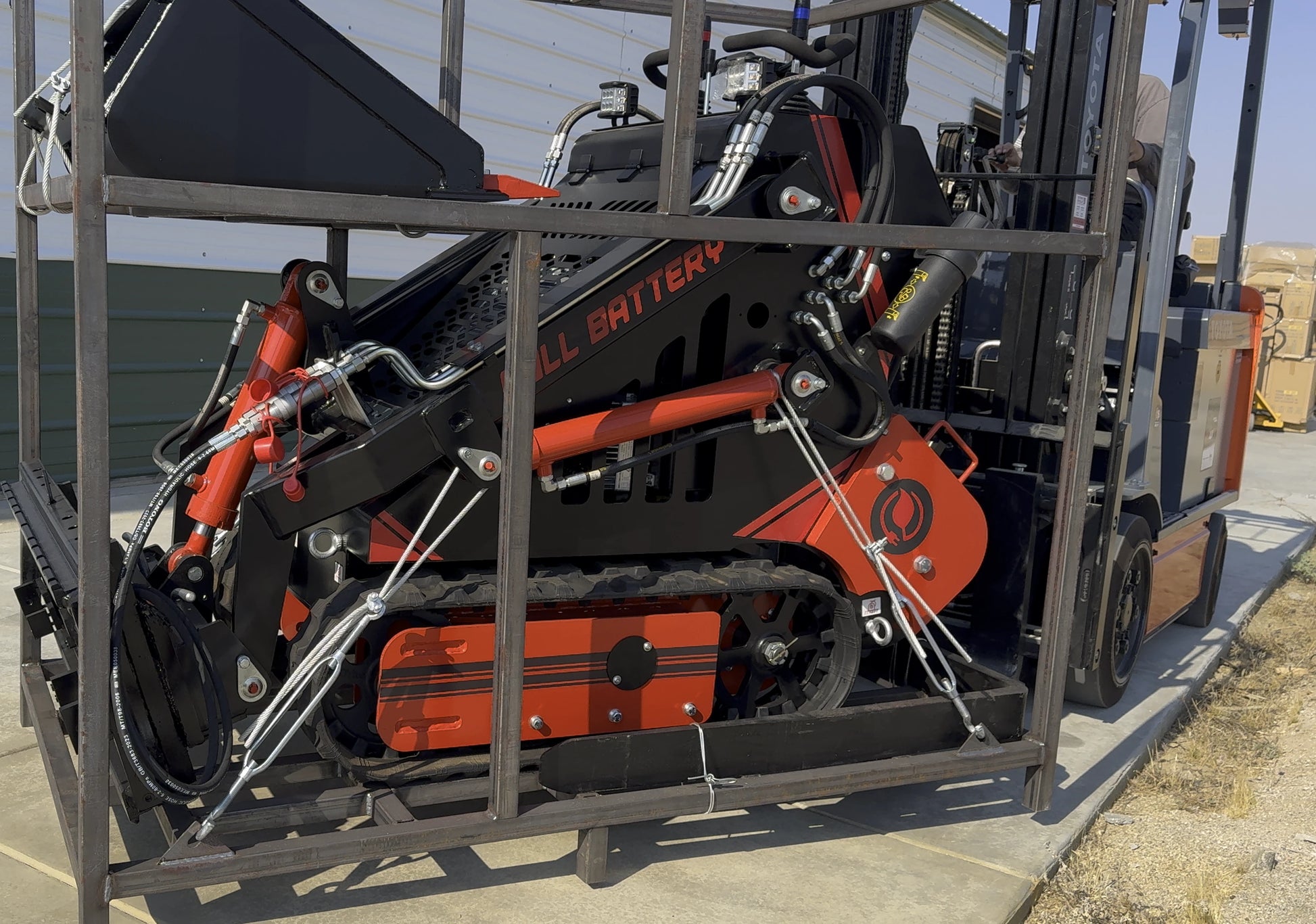

We offer a full line of attachments for this unit. Price includes delivery within the lower 48 US States. In stock, ships same day.

SPEC SHEET

「 ✦ General Specs ✦ 」
Machine total legth w/ bucket 85.4" (2170mm)
Length without standard bucket 68.5" (1740mm)

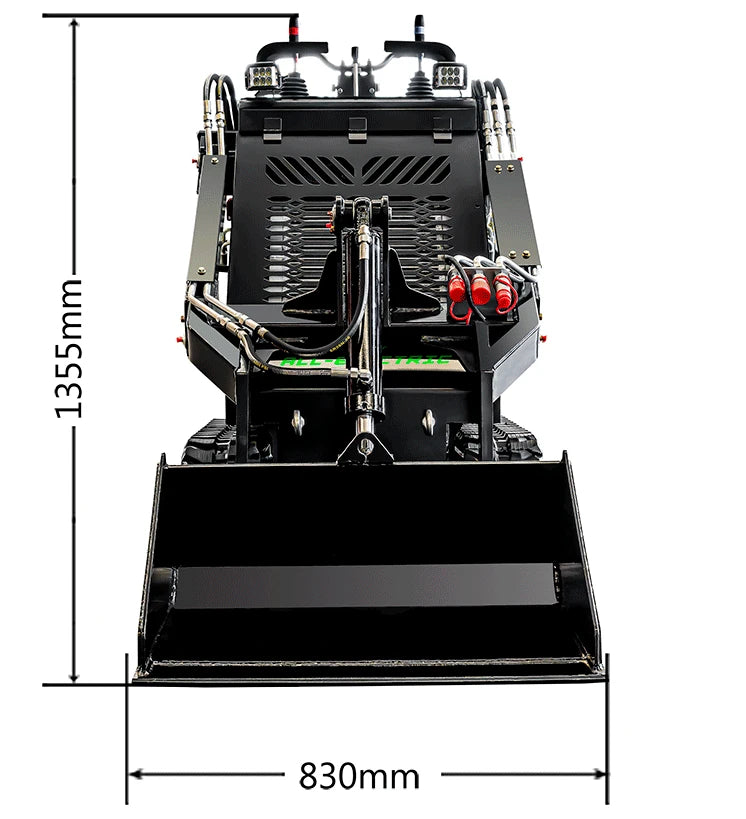

Machine total height 53" (1355mm)
Maximum working height 96" (2435mm)
Maximum hinge pin height 75" (1897mm)
Wheelbase 28.3" (720mm)
Machine total width 32.6" (830mm)
Machine operating weight 1980 Lbs (900kg)
Tallest unloading height 59" (1498mm)
Arm Lift time 4s
Ground clearance 3.6" (92mm)
「 ✦ Performance ✦ 」
Rated Capacity (SAE) 616 Lbs / 350 kgs
Maximum Travel Speed 3.7 MPH (6 km/h)
Bucket Capacity 5.3 Cubic Ft

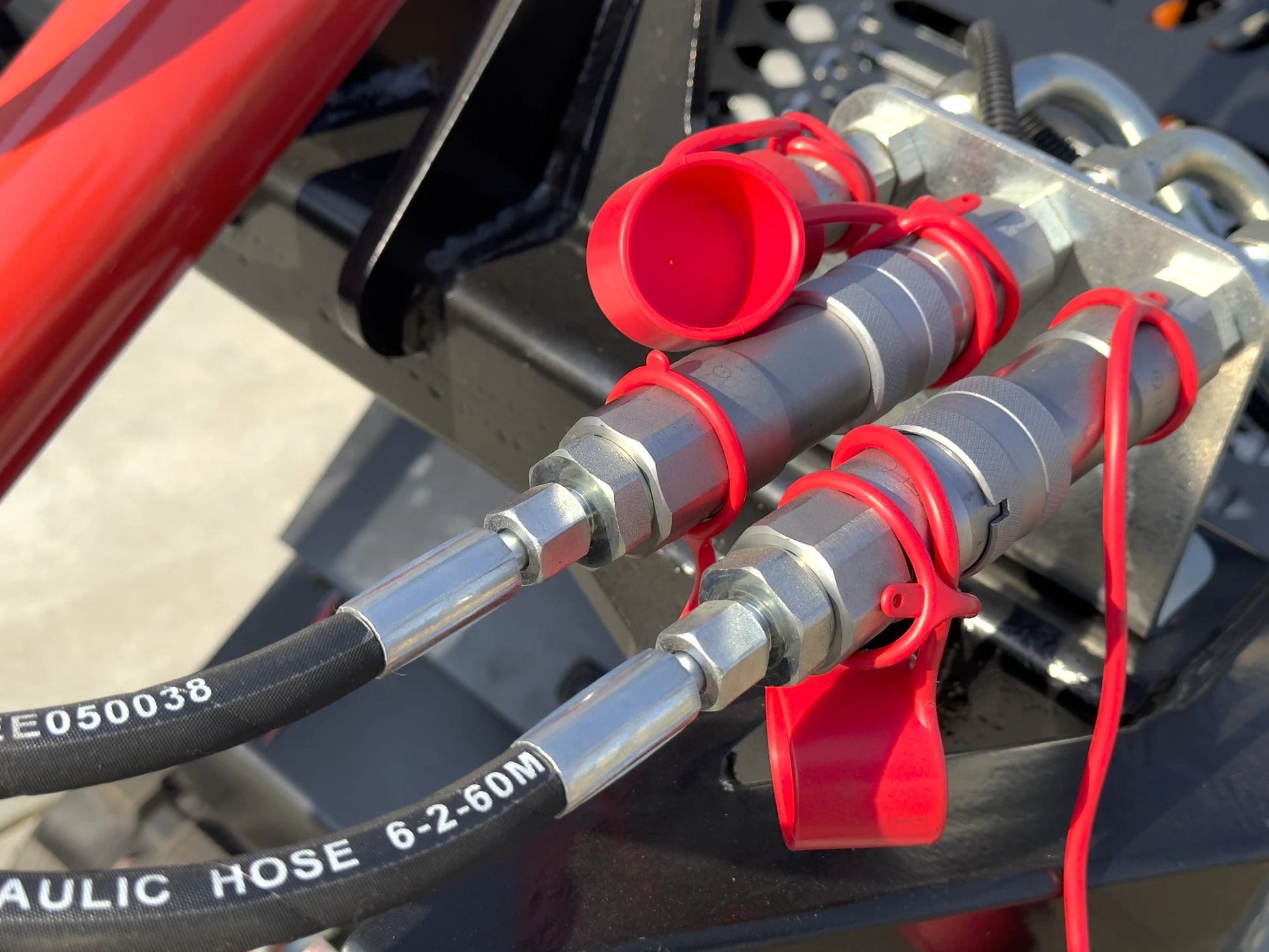

「 ✦ Hydraulic System ✦ 」
Hydraulics high flow 16.5 gpm (62.4 L/min)
Hydraulics low flow 14.8 gpm (56 L/min)
System pressure 3625 psi (250 bar)
Hydraulic tank Capacity 12 gal (45.4 L)

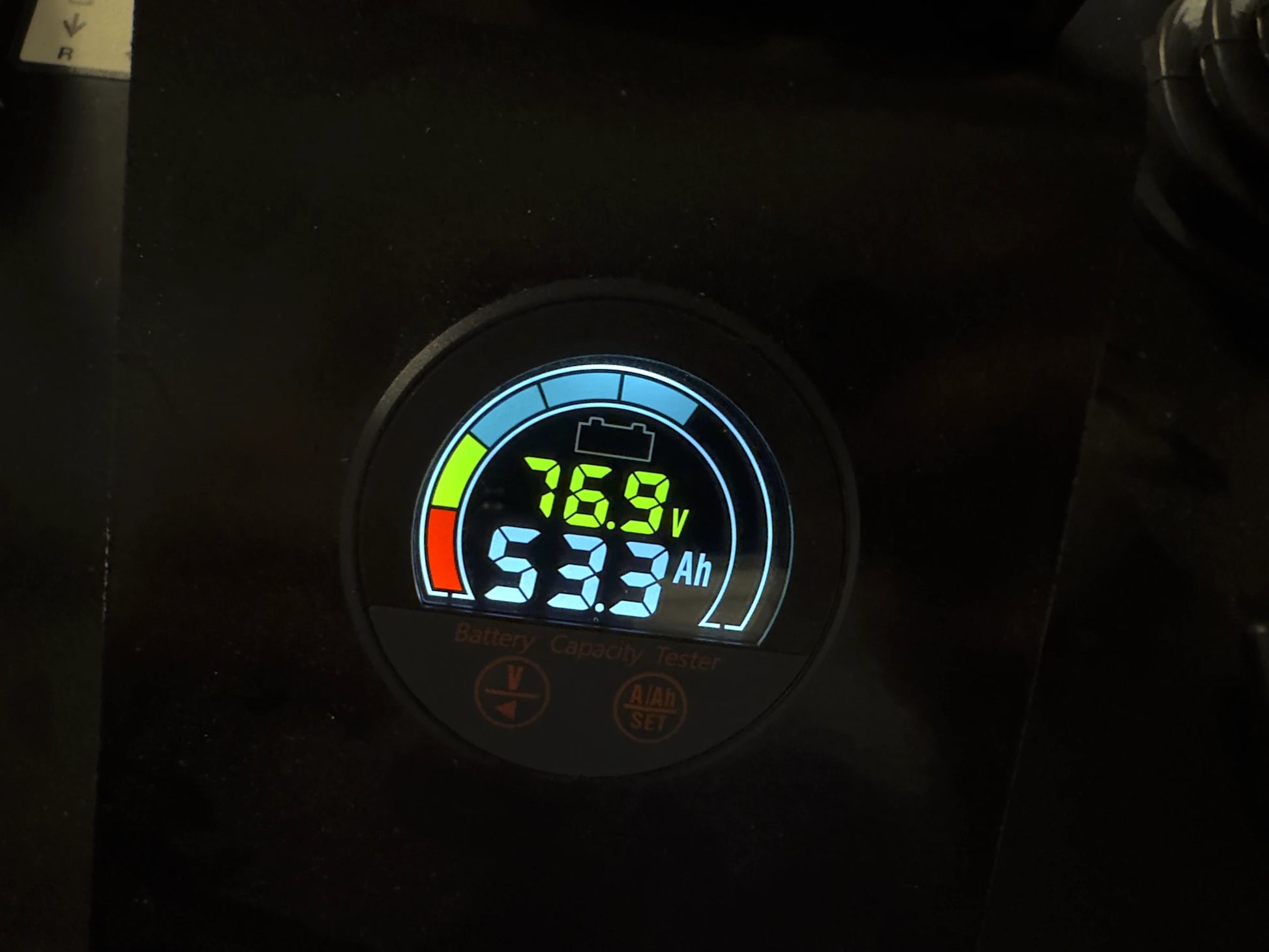

「 ✦ Battery & Charging ✦ 」
Battery Chemistry CATL LiFePO4
Capacity 16.4 kWh
Voltage 72V Nominal
Arrangement 24S 228 Ah
Protection Proprietary BMS
Charger Type Onboard; 90-220V AC input; 20A 99V DC Max Output
AC Input USA 110V 60Hz 16A

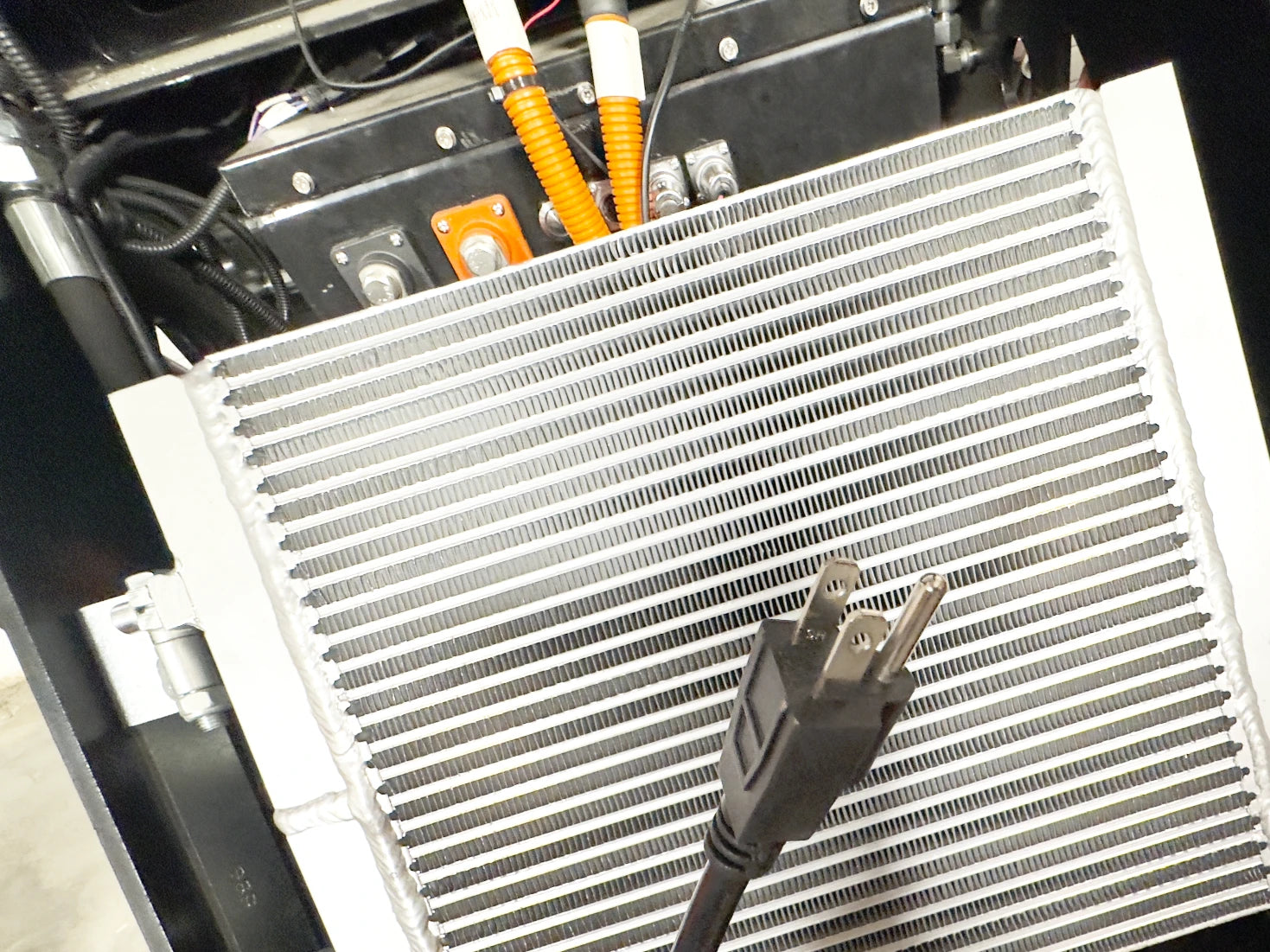

Plug NEMA US 110V 20A outlet required (extension cord must be 12AWG or thicker)
Charging time 0-10 hours (it is extremely unlikely for you to fully deplete the large 16.4 kWh battery bank during normal daily operation. If it's 100% depleted, a full recharge takes 10 hours on the 110V plug.
