Description
The MultiPlus-II 2 x120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator, the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply, with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough, while combining the L1 and L2 outputs for single-phase 120V on each line. The MultiPlus switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode, the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore, in all connection circumstances, both sides of a distribution panel will be supplied with 120V. However, 240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery. The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.
Specifications For The 12/3000/120-50 2x120V, and 24/3000/70-50 2x120V
Power Control & Power Assist- Yes (On L1 input)
Transfer Switch- 50A
Maximum AC Input Current- 50A Each Leg
INVERTER
DC Input Voltage Range-
- 12/3000/120-50 2x120V= 9.5V - 17V
- 24/3000/70-50 2x120V= 19V - 33V
Output Voltage- 120VAC ± 2%
Output Frequency- 60Hz ± 0.1% (1)
Cont. Output Power at 25°C³- 3000VA
Cont. Output Power at 25°C- 2400W
Cont. Output Power at 40°C- 2200W
Cont. Output Power at 65°C- 1700W
Maximum Apparent Feed-In Power- 2500VA
Peak Power- 5500W
Maximum Efficiency-
- 12/3000/120-50 2x120V= 93%
-
24/3000/70-50 2x120V= 94%
Zero Load Power-
- 12/3000/120-50 2x120V= 15W
- 24/3000/70-50 2x120V= 11W
Zero Load Power In AES Mode-
- 12/3000/120-50 2x120V= 10W
- 24/3000/70-50 2x120V= 8W
Zero Load Power In Search Mode- 4W
CHARGER
AC Input Split Phase- 180 - 280VAC 45-65 Hz
AC Input Single Phase- 90-140VAC 45-65Hz
Charge Voltage 'Absorption'-
- 12/3000/120-50 2x120V= 14.4V
- 24/3000/70-50 2x120V= 28.8V
Charge Voltage 'Float'-
- 12/3000/120-50 2x120V= 13.8V
- 24/3000/70-50 2x120V= 27.6V
Storage Mode-
- 12/3000/120-50 2x120V= 13.2V
- 24/3000/70-50 2x120V= 26.4V
Maximum Battery Charge Current-
- 12/3000/120-50 2x120V= 120A
- 24/3000/70-50 2x120V= 70A
Battery Temperature Sensor- Yes
GENERAL
Auxiliary Output- 50A (Each leg) See Note 8
External AC Current Sensor (Optional)- 100A
Programmable Relay- Yes
Protection- a - g
VE.Bus Communication Port- For parallel and three phase operation, remote monitoring and system integration
General Purpose Com. Port- Yes, 2x
Remote On/Off- Yes
Operating Temperature- -40°F - 150°F (Fan assisted cooling)
Humidity (Non-Condensing)- Max 95%
ENCLOSURE
Material & Color- Steel, Blue RAL 5012
Protection Category- IP22

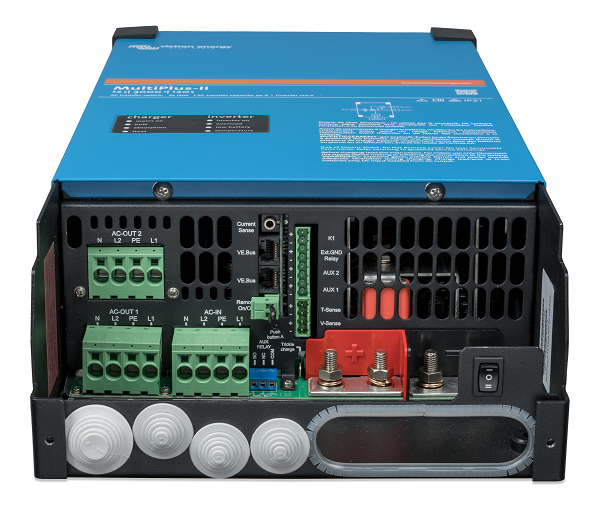

Battery-Connection-
- 12/3000/120-50 2x120V= 2x2 M8 Bolt
- 24/3000/70-50 2x120V= 2 M8 Bolts
120/240V AC-Connection- Screw terminals 21mm² (4AWG)
Weight- 48lb
Dimensions (HxWxD)- 23" x 11" x 6"
STANDARDS
Safety- EN-IEC 60335-1, EN-IEC 60335-2-29, UL 458
Emission, Immunity- EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
1) Can be adjusted to 50Hz
2) Protection Key:
A) Output short circuit
B) Overload
C) Battery voltage to high
D) Battery voltage to low
E) Temperature to high
F) 120 VAC on inverter output
G) Input voltage ripple to high
3) Non-linear load, crest factor 3:1
4) Up to 70°F ambient
5) Switches off when no external AC source available
6) Programmable relay that can a.o. be set for general alarm, DC under voltage or genset start/stop function
AC Rating- 120V / 4A
DC Rating- 4A up to 35VDC, 1A up to 60 VDC
7) A.o. to communicate with a Lithium-Ion battery BMS
8) The auxiliary output of an early production batch of this product was rated at 35A instead of 50A. This batch has serial numbers starting with HQ2170. Later batches, with 50A aux. out put have serial numbers starting with HQ2114 or higher.
Spec Sheet Link
Victron Energy Non-UL Listed MultiPlus-II 2x120V Inverter/Charger Spec Sheet
Manual Link
Victron Energy Non-UL Listed MultiPlus-II 2x120V Inverter/Charger Manual
